Technical characteristics

Frame Range

H80~450

Power Range

0.18~1000kW

Rated Voltage

380V(Special voltage customization)

Rated Frequency

50Hz(Special frequency customization)

Efficiency Level

IE3

Poles

2、4、6、8极

Protection DegreeIP55Cooling ModeIC411
Insulation ClassFOperation ModeS1
Installation ModeB3、B5、B35、B14、B34、V1Wiring ModeY/∆

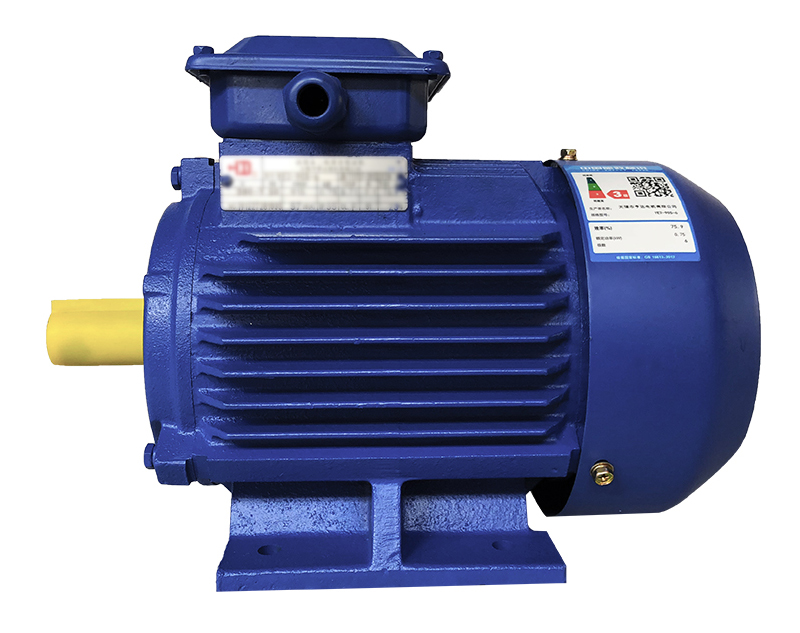

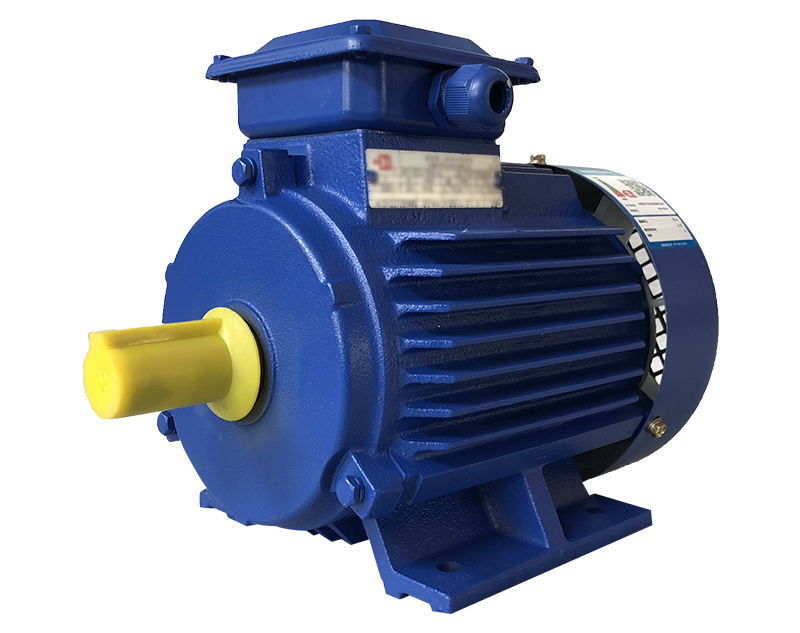

YE3 series three-phase asynchronous motor

YE3 series motor is a product designed and developed to build an energy-saving society. It has the characteristics of high efficiency, energy saving, low vibration, low noise, reliable performance, convenient installation and maintenance, etc. This series of motors are general-purpose three-phase asynchronous motors, which can be used for compressors, fans, water pumps, crushers and other mechanical equipment, as well as field cooperative power sources in petroleum, chemical industry, medicine, mines and other harsh environmental conditions.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
  • ModelPolesRated
    Power
    CurrentRated
    Speed
    Rated
    Torque
    EfficiencyPower
    Factor
    NoiseProtection DegreeInsulation
    Class
    DutyConnectionFrequencyRated Voltage
    kWAr/minN·mηcosΦdBHzV
    YE3-80M1-220.751.7 28452.4 80.7 0.82 62 IP55FS1Y50380
    YE3-80M2-221.12.4 28403.5 82.7 0.83 62 IP55FS1Y50380
    YE3-90S-221.53.2 28404.8 84.2 0.84 67 IP55FS1Y50380
    YE3-90L-222.24.6 28407.0 85.9 0.85 67 IP55FS1Y50380
    YE3-100L-2236.0 28609.6 87.1 0.87 74 IP55FS1Y50380
    YE3-112M-2247.8 289012.7 88.1 0.88 77 IP55FS150380
    YE3-112L-225.510.6 289017.5 89.2 0.88 77 IP55FS150380
    YE3-132S1-225.510.6 291017.5 89.2 0.88 79 IP55FS150380
    YE3-132S2-227.514.4 290523.9 90.1 0.88 79 IP55FS150380
    YE3-132S3-22917.2 290528.7 90.6 0.88 79 IP55FS150380
    YE3-132M-221120.6 290535.0 91.2 0.89 79 IP55FS150380
    YE3-132L-221527.9 290547.8 91.9 0.89 79 IP55FS150380
    YE3-160M1-221120.6 293535.0 91.2 0.89 81 IP55FS150380
    YE3-160M2-221527.9 293547.8 91.9 0.89 81 IP55FS150380
    YE3-160L-2218.534.2 293558.9 92.4 0.89 81 IP55FS150380
    YE3-160L2-222240.5 293570.0 92.7 0.89 81 IP55FS150380
    YE3-180M0-2218.534.2 294058.9 92.4 0.89 83 IP55FS150380
    YE3-180M-222240.5 294070.0 92.7 0.89 83 IP55FS150380
    YE3-180L1-222545.9 294079.6 93.0 0.89 83 IP55FS150380
    YE3-180L2-223054.9 294095.5 93.3 0.89 83 IP55FS150380
    YE3-180LX-223767.4 2940117.8 93.7 0.89 83 IP55FS150380
    YE3-200L1-223054.9 294595.5 93.3 0.89 84 IP55FS150380
    YE3-200L2-223767.4 2945117.8 93.7 0.89 84 IP55FS150380
    YE3-200LX-224580.8 2945143.3 94.0 0.90 84 IP55FS150380
    YE3-225M-224580.8 2950143.3 94.0 0.90 86 IP55FS150380
    YE3-225M2-225598.5 2950175.1 94.3 0.90 86 IP55FS150380
    YE3-250M-225598.5 2965175.1 94.3 0.90 89 IP55FS150380
    YE3-250M2-2275133.7 2965238.8 94.7 0.90 89 IP55FS150380
    YE3-280S-2275133.7 2965238.8 94.7 0.90 91 IP55FS150380
    YE3-280M-2290159.9 2965286.5 95.0 0.90 91 IP55FS150380
    YE3-280L-22110195.1 2965350.2 95.2 0.90 91 IP55FS150380
    YE3-280M2-22110195.1 2965350.2 95.2 0.90 91 IP55FS150380
    YE3-280MX-22132233.6 2965420.2 95.4 0.90 91 IP55FS150380
    YE3-315S-22110195.1 2975350.2 95.2 0.90 92 IP55FS150380
    YE3-315M-22132233.6 2975420.2 95.4 0.90 92 IP55FS150380
    YE3-315L1-22160279.4 2975509.3 95.6 0.91 92 IP55FS150380
    YE3-315L12-22185322.8 2975588.9 95.7 0.91 92 IP55FS150380
    YE3-315L2-22200348.6 2975636.7 95.8 0.91 92 IP55FS150380
    YE3-315LX1-22220383.4 2975700.3 95.8 0.91 92 IP55FS150380
    YE3-315LX2-22250435.7 2975795.8 95.8 0.91 92 IP55FS150380
    YE3-355M0-22220383.4 2970700.3 95.8 0.91 100 IP55FS150380
    YE3-355M-22250435.7 2970795.8 95.8 0.91 100 IP55FS150380
    YE3-355L0-22280488.0 2970891.3 95.8 0.91 100 IP55FS150380
    YE3-355L-22315549.0 29701002.8 95.8 0.91 100 IP55FS150380
    YE3-355X1-22355625.6 29701130.1 95.8 0.90 100 IP55FS150380
    YE3-355X2-22375660.8 29701193.8 95.8 0.90 100 IP55FS150380
    YE3-400M1-22355625.6 29851130.1 95.8 0.90 97 IP55FS150380
    YE3-400M2-22400704.9 29851273.3 95.8 0.90 97 IP55FS150380
    YE3-400M3-22450793.0 29851432.5 95.8 0.90 97 IP55FS150380
    YE3-400L1-22500881.1 29851591.7 95.8 0.90 97 IP55FS150380
    YE3-400L2-22560976.0 29851782.7 95.8 0.91 97 IP55FS150380
    YE3-400L3-226301098.0 29852005.5 95.8 0.91 97 IP55FS150380
    YE3-450X1-227101237.4 29902260.2 95.8 0.91 97 IP55FS150380
    YE3-450X2-228001394.3 29902546.7 95.8 0.91 97 IP55FS150380
    YE3-450X3-229001568.6 29902865.0 95.8 0.91 97 IP55FS150380
    YE3-450X4-2210001723.9 29903183.3 95.8 0.92 97 IP55FS150380
    YE3-80M1-440.551.4 13803.5 80.8 0.75 56 IP55FS1Y50380
    YE3-80M2-440.751.8 13804.8 82.5 0.75 56 IP55FS1Y50380
    YE3-90S-441.12.6 13907.0 84.1 0.76 59 IP55FS1Y50380
    YE3-90L-441.53.5 13909.6 85.3 0.77 59 IP55FS1Y50380
    YE3-100L1-442.24.8 141014.0 86.7 0.81 64 IP55FS1Y50380
    YE3-100L2-4436.3 141019.1 87.7 0.82 64 IP55FS1Y50380
    YE3-112M-4448.4 144025.5 88.6 0.82 65 IP55FS150380
    YE3-112L-445.511.2 144035.0 89.6 0.83 64 IP55FS150380
    YE3-132S-445.511.2 144535.0 89.6 0.83 71 IP55FS150380
    YE3-132M-447.515.0 144547.8 90.4 0.84 71 IP55FS150380
    YE3-132M2-44917.9 144557.3 90.9 0.84 71 IP55FS150380
    YE3-132L1-441121.5 144570.0 91.4 0.85 71 IP55FS150380
    YE3-132L2-441528.8 144595.5 92.1 0.86 71 IP55FS150380
    YE3-160M-441121.5 147070.0 91.4 0.85 73 IP55FS150380
    YE3-160M1-441325.3 147082.8 91.8 0.85 73 IP55FS150380
    YE3-160L-441528.8 147095.5 92.1 0.86 73 IP55FS150380
    YE3-160L2-4418.535.3 1470117.8 92.6 0.86 73 IP55FS150380
    YE3-180M0-441732.5 1470108.2 92.4 0.86 76 IP55FS150380
    YE3-180M-4418.535.3 1470117.8 92.6 0.86 76 IP55FS150380
    YE3-180L0-4420.539.0 1470130.5 92.8 0.86 76 IP55FS150380
    YE3-180L-442241.8 1470140.1 93.0 0.86 76 IP55FS150380
    YE3-180L2-443056.6 1470191.0 93.6 0.86 76 IP55FS150380
    YE3-180LX-443769.6 1470235.6 93.9 0.86 76 IP55FS150380
    YE3-200L-443056.6 1470191.0 93.6 0.86 76 IP55FS150380
    YE3-200L2-443769.6 1470235.6 93.9 0.86 76 IP55FS150380
    YE3-225S-443769.6 1475235.6 93.9 0.86 78 IP55FS150380
    YE3-225M-444584.4 1475286.5 94.2 0.86 78 IP55FS150380
    YE3-225M2-4455102.7 1475350.2 94.6 0.86 78 IP55FS150380
    YE3-250M-4455102.7 1475350.2 94.6 0.86 79 IP55FS150380
    YE3-250M2-4475136.3 1475477.5 95.0 0.88 79 IP55FS150380
    YE3-250XM-4475136.3 1475477.5 95.0 0.88 79 IP55FS150380
    YE3-250MX-4490163.2 1475573.0 95.2 0.88 79 IP55FS150380
    YE3-280S-4475136.3 1485477.5 95.0 0.88 80 IP55FS150380
    YE3-280M-4490163.2 1485573.0 95.2 0.88 80 IP55FS150380
    YE3-280M1-44110196.8 1485700.3 95.4 0.89 80 IP55FS150380
    YE3-280MX-44132235.7 1485840.4 95.6 0.89 80 IP55FS150380
    YE3-315S-44110196.8 1485700.3 95.4 0.89 88 IP55FS150380
    YE3-315M-44132235.7 1485840.4 95.6 0.89 88 IP55FS150380
    YE3-315L1-44160285.1 14851018.7 95.8 0.89 88 IP55FS150380
    YE3-315L12-44185329.3 14851177.8 95.9 0.89 88 IP55FS150380
    YE3-315L2-44200351.7 14851273.3 96.0 0.90 88 IP55FS150380
    YE3-315LX1-44220386.9 14851400.7 96.0 0.90 88 IP55FS150380
    YE3-315LX2-44250439.6 14851591.7 96.0 0.90 88 IP55FS150380
    YE3-355M01-44220386.9 14901400.7 96.0 0.90 95 IP55FS150380
    YE3-355M-44250439.6 14901591.7 96.0 0.90 95 IP55FS150380
    YE3-355M2-44280492.4 14901782.7 96.0 0.90 95 IP55FS150380
    YE3-355L-44315553.9 14902005.5 96.0 0.90 95 IP55FS150380
    YE3-355L2-44355638.5 14902260.2 96.0 0.88 95 IP55FS150380
    YE3-355X1-44355638.5 14902260.2 96.0 0.88 95 IP55FS150380
    YE3-355X2-44375674.4 14902387.5 96.0 0.88 95 IP55FS150380
    YE3-400M1-44355638.5 14902260.2 96.0 0.88 93 IP55FS150380
    YE3-400M2-44400719.4 14902546.7 96.0 0.88 93 IP55FS150380
    YE3-400M3-44450809.3 14902865.0 96.0 0.88 93 IP55FS150380
    YE3-400L1-44500899.3 14903183.3 96.0 0.88 93 IP55FS150380
    YE3-400L2-44560995.9 14903565.3 96.0 0.89 93 IP55FS150380
    YE3-400L3-446301120.3 14904011.0 96.0 0.89 93 IP55FS150380
    YE3-450X1-447101262.6 14904520.3 96.0 0.89 95 IP55FS150380
    YE3-450X2-448001406.8 14905093.3 96.0 0.90 95 IP55FS150380
    YE3-450X3-449001582.7 14905730.0 96.0 0.90 95 IP55FS150380
    YE3-450X4-4410001758.6 14906366.7 96.0 0.90 95 IP55FS150380
    YE3-80M1-660.371.1 9003.5 73.5 0.70 54 IP55FS1Y50380
    YE3-80M2-660.551.5 9005.3 77.2 0.72 54 IP55FS1Y50380
    YE3-90S-660.752.0 9157.2 78.9 0.71 57 IP55FS1Y50380
    YE3-90L-661.12.8 91510.5 81.0 0.73 57 IP55FS1Y50380
    YE3-100L-661.53.8 92014.3 82.5 0.73 61 IP55FS1Y50380
    YE3-112M-662.25.4 94021.0 84.3 0.74 65 IP55FS1Y50380
    YE3-132S-6637.2 96028.7 85.6 0.74 69 IP55FS1Y50380
    YE3-132M1-6649.5 96038.2 86.8 0.74 69 IP55FS150380
    YE3-132M2-665.512.7 96052.5 88.0 0.75 69 IP55FS150380
    YE3-160M-667.516.2 97071.6 89.1 0.79 73 IP55FS150380
    YE3-160L-661123.1 970105.1 90.3 0.80 73 IP55FS150380
    YE3-180L-661530.9 970143.3 91.2 0.81 73 IP55FS150380
    YE3-180L2-661734.9 970162.4 91.5 0.81 73 IP55FS150380
    YE3-180L3-6620.541.8 970195.8 92.0 0.81 73 IP55FS150380
    YE3-200L1-6618.537.8 975176.7 91.7 0.81 73 IP55FS150380
    YE3-200L2-662244.8 975210.1 92.2 0.81 73 IP55FS150380
    YE3-225M-663059.1 980286.5 92.9 0.83 74 IP55FS150380
    YE3-250M-663771.7 980353.4 93.3 0.84 76 IP55FS150380
    YE3-280S-664585.8 980429.8 93.7 0.85 78 IP55FS150380
    YE3-280M-6655103.3 980525.3 94.1 0.86 78 IP55FS150380
    YE3-315S-6675143.4 985716.3 94.6 0.84 83 IP55FS150380
    YE3-315M-6690169.5 985859.5 94.9 0.85 83 IP55FS150380
    YE3-315L1-66110206.8 9851050.5 95.1 0.85 83 IP55FS150380
    YE3-315L2-66132244.5 9851260.6 95.4 0.86 83 IP55FS150380
    YE3-355M1-66160295.7 9901528.0 95.6 0.86 85 IP55FS150380
    YE3-355M12-66185337.6 9901766.8 95.7 0.87 85 IP55FS150380
    YE3-355M2-66200364.6 9901910.0 95.8 0.87 85 IP55FS150380
    YE3-355M3-66220401.1 9902101.0 95.8 0.87 85 IP55FS150380
    YE3-355L-66250455.7 9902387.5 95.8 0.87 85 IP55FS150380
    YE3-355L2-66280510.4 9902674.0 95.8 0.87 85 IP55FS150380
    YE3-355X1-66315609.3 9903008.3 95.8 0.82 85 IP55FS150380
    YE3-400M1-66315609.3 9903008.3 95.8 0.82 92 IP55FS150380
    YE3-400M2-66355686.6 9903390.3 95.8 0.82 92 IP55FS150380
    YE3-400L1-66400764.3 9903820.0 95.8 0.83 92 IP55FS150380
    YE3-400L2-66450859.9 9904297.5 95.8 0.83 92 IP55FS150380
    YE3-400L3-66500955.4 9904775.0 95.8 0.83 92 IP55FS150380
    YE3-450X0-665601057.3 9905348.0 95.8 0.84 95 IP55FS150380
    YE3-450X1-666301189.5 9906016.5 95.8 0.84 95 IP55FS150380
    YE3-450X2-666701265.0 9906398.5 95.8 0.84 95 IP55FS150380
    YE3-450X3-667101340.5 9906780.5 95.8 0.84 95 IP55FS150380
    YE3-80M1-880.180.8 6652.3 58.7 0.61 52 IP55FS1Y50380
    YE3-80M2-880.251.0 6653.2 64.1 0.61 52 IP55FS1Y50380
    YE3-90S-880.371.3 6854.7 69.3 0.61 56 IP55FS1Y50380
    YE3-90L-880.551.9 6857.0 73.0 0.61 56 IP55FS1Y50380
    YE3-100L1-880.752.3 7059.6 75.0 0.67 59 IP55FS1Y50380
    YE3-100L2-881.13.1 70514.0 77.7 0.69 59 IP55FS1Y50380
    YE3-112M-881.54.1 70519.1 79.7 0.70 61 IP55FS1Y50380
    YE3-132S-882.25.7 72028.0 81.9 0.71 64 IP55FS1Y50380
    YE3-132M-8837.5 72038.2 83.5 0.73 64 IP55FS1Y50380
    YE3-160M1-8849.8 72050.9 84.8 0.73 68 IP55FS150380
    YE3-160M2-885.513.1 72070.0 86.2 0.74 68 IP55FS150380
    YE3-160L-887.517.4 72095.5 87.3 0.75 68 IP55FS150380
    YE3-160L-88920.9 870114.6 87.3 0.75 68 IP55FS160440
    YE3-180L-881125.2 730140.1 88.6 0.75 70 IP55FS150380
    YE3-200L-881533.5 730191.0 89.6 0.76 73 IP55FS150380
    YE3-225S-8818.541.0 735235.6 90.1 0.76 73 IP55FS150380
    YE3-225M-882247.3 735280.1 90.6 0.78 73 IP55FS150380
    YE3-250M-883063.2 730382.0 91.3 0.79 75 IP55FS150380
    YE3-280S-883777.5 735471.1 91.8 0.79 76 IP55FS150380
    YE3-280M-884593.9 735573.0 92.2 0.79 76 IP55FS150380
    YE3-315S-8855111.5 745700.3 92.5 0.81 82 IP55FS150380
    YE3-315M-8875151.1 745955.0 93.1 0.81 82 IP55FS150380
    YE3-315L1-8890178.5 7451146.0 93.4 0.82 82 IP55FS150380
    YE3-315L2-88110217.5 7451400.7 93.7 0.82 82 IP55FS150380
    YE3-315L3-88132260.2 7451680.8 94.0 0.82 82 IP55FS150380
    YE3-355M1-88132260.2 7451680.8 94.0 0.82 89 IP55FS150380
    YE3-355M2-88160314.4 7452037.3 94.3 0.82 89 IP55FS150380
    YE3-355M3-88185358.4 7452355.7 94.5 0.83 89 IP55FS150380
    YE3-355L-88200387.0 7452546.7 94.6 0.83 89 IP55FS150380
    YE3-355L2-88220425.7 7452801.3 94.6 0.83 89 IP55FS150380
    YE3-355X1-88250501.9 7453183.3 94.6 0.80 89 IP55FS150380
    YE3-355X2-88315632.4 7454011.0 94.6 0.80 89 IP55FS150380
    YE3-400M1-88250501.9 7453183.3 94.6 0.80 91 IP55FS150380
    YE3-400M2-88280562.1 7453565.3 94.6 0.80 91 IP55FS150380
    YE3-400L1-88315632.4 7454011.0 94.6 0.80 91 IP55FS150380
    YE3-400L2-88355712.7 7454520.3 94.6 0.80 91 IP55FS150380
    YE3-400L3-88400803.1 7455093.3 94.6 0.80 91 IP55FS150380
    YE3-450X1-88450892.3 7455730.0 94.6 0.81 93 IP55FS150380
    YE3-450X2-88500991.4 7456366.7 94.6 0.81 93 IP55FS150380
    YE3-450X3-885601110.4 7457130.7 94.6 0.81 93 IP55FS150380
    YE3-450X4-886301249.2 7458022.0 94.6 0.81 93 IP55FS150380
