In the current trend of industrial intelligence and green energy conservation, permanent magnet synchronous motors have gradually replaced traditional motors as the preferred power source for many devices due to their core advantages of high efficiency, energy saving, and stability. However, many users are prone to the misconception of "higher parameters are better" and "blindly following the trend to choose high-end" when selecting. In fact, the key to selection lies in "precise adaptation" - different working conditions and equipment have huge differences in motor requirements. Choosing the right one can achieve cost reduction and efficiency improvement, while choosing the wrong one may result in performance waste or frequent failures. Starting from the core logic of selection, core adaptation scenarios, and avoidance points, we will help you quickly find the suitable permanent magnet synchronous motor for yourself.

1、Selection core: Focus on three key points first, do not blindly follow the trend

The core of selecting permanent magnet synchronous motors is to "meet actual needs", without pursuing high parameter stacking. By focusing on three core dimensions, one can quickly find the appropriate direction:

Firstly, clarify the load and operating characteristics: is it continuous and stable operation (such as fans and pumps), or frequent start stop, acceleration and deceleration (such as robots and machine tools)? For equipment that operates continuously, the focus should be on "continuous efficiency", while for those that start and stop frequently, attention should be paid to "peak torque" and "dynamic response speed" to avoid long-term overload causing failures.

Next, match the environment and installation conditions: Is the space limited? If it is equipment such as new energy vehicles and drones, priority should be given to lightweight models with high power density; If in humid, dusty or high-temperature environments (such as chemical workshops, outdoor equipment), it is necessary to choose a style with a protection level of IP65 or above, temperature and corrosion resistance, to prevent demagnetization of magnets or damage to motors.

Finally, consider system compatibility: the motor should be matched with the driver and control system, and the control method (such as vector control) and voltage and current range should be matched. There is no need to blindly choose high-end control systems. Ordinary equipment can be matched with basic drivers to meet the needs and reduce costs.

2、Core adaptation scenario: Select motor based on working conditions, precise and not wasteful

The advantages of permanent magnet synchronous motors are more prominent in specific scenarios, and there is no need to worry about segmented industries. Simply match them according to the core working conditions:

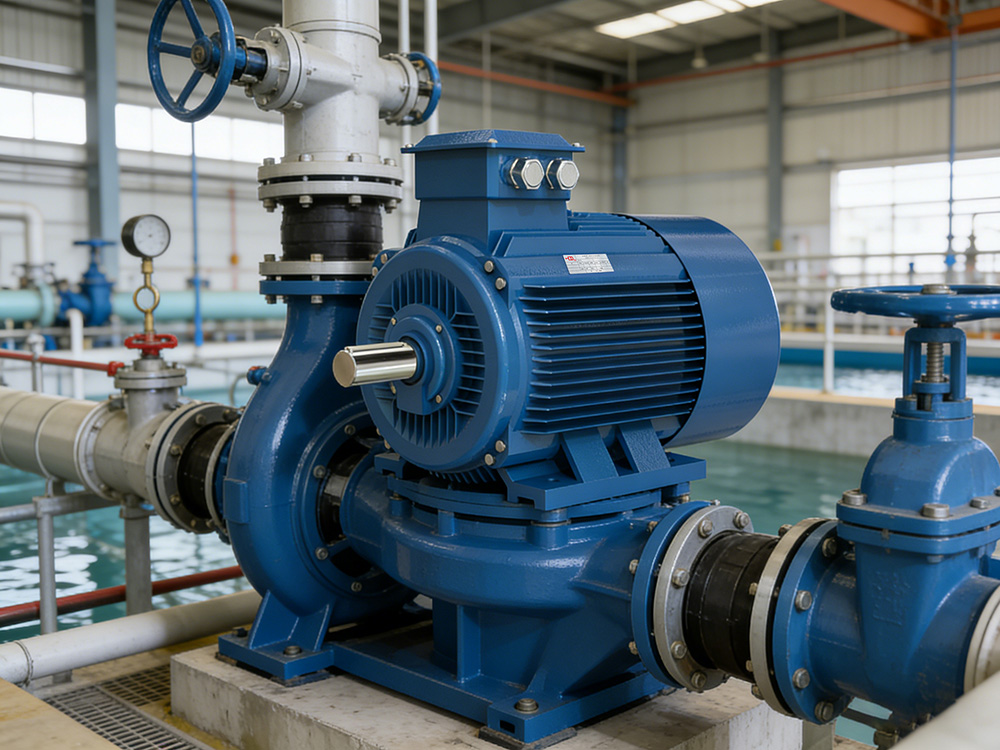

① Energy saving renovation scenarios (general equipment such as fans, water pumps, compressors, etc.)

This type of equipment is a major industrial energy consumer, with the core requirement of "cost reduction and energy conservation". Permanent magnet synchronous motors are 15% -25% more efficient than traditional asynchronous motors, with a power factor consistently above 0.9, which can significantly reduce electricity costs. When selecting, there is no need to pursue complex functions. Priority should be given to IE5 or above high-efficiency models to ensure high efficiency in commonly used load ranges (such as pump flow and pressure stability ranges). The investment payback period is usually 1-3 years.

② High precision control scenarios (machine tools, robots, automated production lines)

This type of equipment requires precise speed regulation and fast response, such as ensuring accurate positioning in machine tool processing and flexible and delay free robot joints. Permanent magnet synchronous motors have high speed accuracy and smooth operation. When paired with ordinary encoders, they can meet most high-precision requirements. When selecting, the focus should be on "dynamic response speed" and "operational stability" to avoid vibration or positioning deviation, and to help equipment improve processing efficiency and product qualification rate.

③ Lightweight and efficient scenarios (new energy vehicles, energy storage equipment, small equipment)

For equipment with strict requirements for space and weight, permanent magnet synchronous motors have obvious advantages of "small size, high power", with a weight 20% -30% lighter than traditional motors, which can save installation space and reduce overall energy consumption of the equipment. When selecting, focus on "power density" and "range adaptation", such as balancing high-speed performance and low-speed torque for new energy vehicle motors, ensuring long-term stable operation for energy storage equipment motors, and adapting to a wide voltage range.

④ Adverse working conditions scenarios (outdoor equipment, chemical machinery, mining machinery)

This type of equipment faces complex environments such as high temperature, dust, and corrosion, and the core requirement is "durability and reliability". When selecting, priority should be given to motors with high protection levels (IP67 or above) and high-temperature resistant permanent magnet materials. At the same time, attention should be paid to the sealing performance and impact resistance of the motor to avoid demagnetization of the magnet or motor failure caused by environmental factors, and to extend the service life of the equipment.

3、Selection avoidance pitfalls: 4 common misconceptions to avoid

① Blindly chasing high power: Reserve a safety margin of 10% -30% according to the actual load. Excessive power not only increases procurement costs, but also reduces operating efficiency and causes waste;

② Neglecting environmental impact: Choosing motors with ordinary protection levels in humid and high-temperature environments can easily lead to malfunctions in the later stages and increase maintenance costs;

③ Not considering system compatibility: Buying a motor separately without a driver may result in the motor not functioning properly or not meeting expected performance;

④ Only calculate the initial cost: Although the purchase price of permanent magnet synchronous motors is slightly higher than traditional motors, the energy-saving benefits can quickly recoup costs, and long-term use is more cost-effective. Don't choose inefficient models just because you are greedy for cheap ones.

4、Summary: The key to selection is "adaptation" rather than "high-end"

There is no absolute "good or bad" for permanent magnet synchronous motors, only "adaptability". For continuous operation of general equipment, choose the high-efficiency basic model with the highest cost-effectiveness; Equipment with high precision and high dynamic requirements, focusing on response speed and stability; Due to limited space or harsh environments, the focus should be on power density and protection level.

When selecting, first clarify your own working conditions (load, environment, installation space), and then match the core characteristics of the motor, without being overwhelmed by complex parameters. If unsure, detailed operating conditions can be communicated to the supplier, and a professional team can be used to develop a plan that can meet performance requirements while avoiding unnecessary cost investment.
