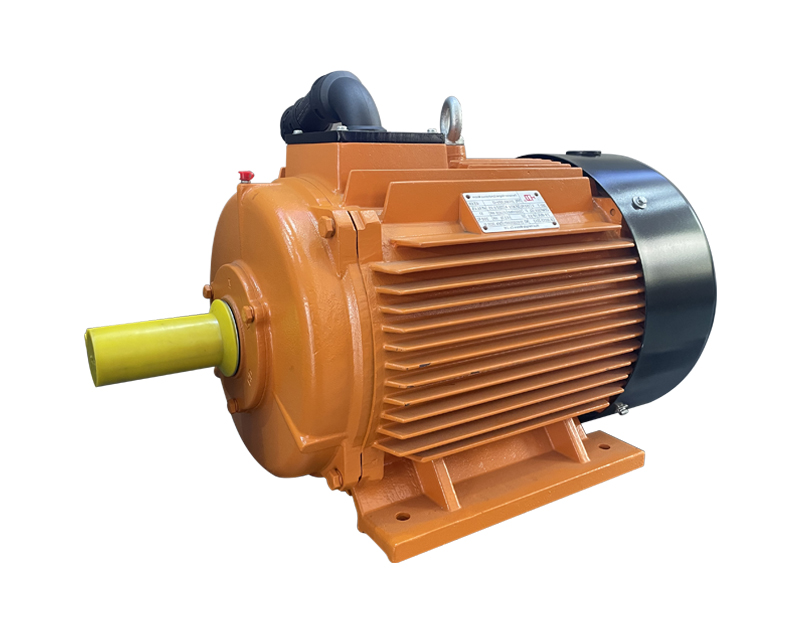

Variable frequency drive permanent magnet synchronous motor-无锡市亨达电机有限公司

20211027/50a3c42a4151b1e864d76d1694a7d019.jpg

20211027/b7647fe486c96a2beb9ce4d1b88a044f.jpg

Technical characteristics

Frame Range	H80~355	Power Range	0.55~450kW
Rated Voltage	380V	Rated Speed	3000、1500、1000、750
Efficiency Level	1	Protection Degree	IP55
Cooling Mode	IC411、IC416	Insulation Class	F
Operation Mode	S1	Installation Mode	B3、B5、B35、B14、B34、V1
Wiring Mode	Y

Variable frequency drive permanent magnet synchronous motor

This series of motors operate at synchronous electric speed, there is no slip between stator and rotor, and there is no rotor copper consumption and iron consumption during stable operation, which can reduce the fan and the corresponding wind friction consumption. Rare earth permanent magnet motor does not need reactive excitation current, so it can significantly improve the power factor to the limit value (1.0); It can meet the requirements of various load conditions, has obvious energy-saving effect, reliable and safe operation, low replacement cost and short investment payback period. It has been recommended by the national "energy saving project of motor system".

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Poles	Rated Power kW	Rated Voltage V	Rated Current A	Rated Frequency Hz	Connection	Rated Speed rpm	Rated Torque N.m	Efficiency	Power Factor	Protection Class	Insulation Class	Duty
XYT80M30P8-0.75	8	0.75	380	1.5	200.0	Y	3000	2.4	85.9%	0.95	IP55	F	S1
XYT80M30P8-1.1	8	1.1	380	2.1	200.0	Y	3000	3.5	87.4%	0.95	IP55	F	S1
XYT90S30P6-1.5	6	1.5	380	2.8	150.0	Y	3000	4.8	88.6%	0.95	IP55	F	S1
XYT90L30P6-2.2	6	2.2	380	4.1	150.0	Y	3000	7.0	89.9%	0.95	IP55	F	S1
XYT90L30P6-3	6	3	380	5.5	150.0	Y	3000	9.6	90.8%	0.95	IP55	F	S1
XYT90L30P6-4	6	4	380	7.3	150.0	Y	3000	12.7	91.5%	0.95	IP55	F	S1
XYT100L30P6-3	6	3	380	5.5	150.0	Y	3000	9.6	90.8%	0.95	IP55	F	S1
XYT100L30P6-3.5	6	3.5	380	6.4	150.0	Y	3000	11.1	91.2%	0.95	IP55	F	S1
XYT100L30P6-4	6	4	380	7.3	150.0	Y	3000	12.7	91.5%	0.95	IP55	F	S1
XYT112M30P6-4	6	4	380	7.3	150.0	Y	3000	12.7	91.5%	0.95	IP55	F	S1
XYT112M30P6-5.5	6	5.5	380	9.9	150.0	Y	3000	17.5	92.4%	0.95	IP55	F	S1
XYT112M30P6-7.5	6	7.5	380	13.4	150.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT112M30P8-5.5	8	5.5	380	9.9	200.0	Y	3000	17.5	92.4%	0.95	IP55	F	S1
XYT112M30P8-7.5	8	7.5	380	13.4	200.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT132S30P6-5.5	6	5.5	380	9.9	150.0	Y	3000	17.5	92.4%	0.95	IP55	F	S1
XYT132S30P6-7.5	6	7.5	380	13.4	150.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT132S30P6-7.5	6	7.5	380	13.4	150.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT132M30P6-9	6	9	380	16.1	150.0	Y	3000	28.7	93.4%	0.95	IP55	F	S1
XYT132M30P6-11	6	11	380	19.5	150.0	Y	3000	35.0	93.8%	0.95	IP55	F	S1
XYT132M30P6-15	6	15	380	26.5	150.0	Y	3000	47.8	94.3%	0.95	IP55	F	S1
XYT132M30P8-9	8	9	380	16.1	200.0	Y	3000	28.7	93.4%	0.95	IP55	F	S1
XYT132M30P8-11	8	11	380	19.5	200.0	Y	3000	35.0	93.8%	0.95	IP55	F	S1
XYT132M30P8-15	8	15	380	26.5	200.0	Y	3000	47.8	94.3%	0.95	IP55	F	S1
XYT160M30P6-11	6	11	380	19.5	150.0	Y	3000	35.0	93.8%	0.95	IP55	F	S1
XYT160M30P6-15	6	15	380	26.5	150.0	Y	3000	47.8	94.3%	0.95	IP55	F	S1
XYT160M30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT160L30P6-18.5	6	18.5	380	32.5	150.0	Y	3000	58.9	94.7%	0.95	IP55	F	S1
XYT160L30P6-22	6	22	380	38.6	150.0	Y	3000	70.0	94.9%	0.95	IP55	F	S1
XYT160L30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT180M30P6-22	6	22	380	38.6	150.0	Y	3000	70.0	94.9%	0.95	IP55	F	S1
XYT180L30P6-25	6	25	380	43.7	150.0	Y	3000	79.6	95.2%	0.95	IP55	F	S1
XYT180M30P6-26	6	26	380	45.5	150.0	Y	3000	82.8	95.2%	0.95	IP55	F	S1
XYT180L30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT180L30P6-37	6	37	380	64.4	150.0	Y	3000	117.8	95.7%	0.95	IP55	F	S1
XYT200L30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT200L30P6-37	6	37	380	64.4	150.0	Y	3000	117.8	95.7%	0.95	IP55	F	S1
XYT200L30P6-45	6	45	380	78.2	150.0	Y	3000	143.3	95.9%	0.95	IP55	F	S1
XYT200L30P6-75	6	75	400	123.1	150.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT200L30P6-90	6	90	400	147.6	150.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT225S30P8-45	8	45	380	78.2	200.0	Y	3000	143.3	95.9%	0.95	IP55	F	S1
XYT225S30P8-55	8	55	380	95.3	200.0	Y	3000	175.1	96.1%	0.95	IP55	F	S1
XYT225S30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT225M30P8-45	8	45	380	78.2	200.0	Y	3000	143.3	95.9%	0.95	IP55	F	S1
XYT225M30P8-55	8	55	380	95.3	200.0	Y	3000	175.1	96.1%	0.95	IP55	F	S1
XYT225M30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT225M30P8-90	8	90	380	155.4	200.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT250M30P8-55	8	55	380	95.3	200.0	Y	3000	175.1	96.1%	0.95	IP55	F	S1
XYT250M30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT250M30P8-90	8	90	380	155.4	200.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT250M30P8-110	8	110	380	190.1	200.0	Y	3000	350.2	96.4%	0.95	IP55	F	S1
XYT280S30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT280M30P8-90	8	90	380	155.4	200.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT280M30P8-110	8	110	380	190.1	200.0	Y	3000	350.2	96.4%	0.95	IP55	F	S1
XYT280M30P8-132	8	132	380	227.9	200.0	Y	3000	420.2	96.5%	0.95	IP55	F	S1
XYT280M30P8-160	8	160	380	275.9	200.0	Y	3000	509.3	96.6%	0.95	IP55	F	S1
XYT280M30P8-200	8	200	380	343.9	200.0	Y	3000	636.7	96.9%	0.95	IP55	F	S1
XYT315S30P8-110	8	110	380	190.1	200.0	Y	3000	350.2	96.4%	0.95	IP55	F	S1
XYT315S30P8-132	8	132	380	227.9	200.0	Y	3000	420.2	96.5%	0.95	IP55	F	S1
XYT315M30P8-132	8	132	380	227.9	200.0	Y	3000	420.2	96.5%	0.95	IP55	F	S1
XYT315M30P8-160	8	160	380	275.9	200.0	Y	3000	509.3	96.6%	0.95	IP55	F	S1
XYT315M30P8-200	8	200	380	343.9	200.0	Y	3000	636.7	96.9%	0.95	IP55	F	S1
XYT315L30P8-160	8	160	380	275.9	200.0	Y	3000	509.3	96.6%	0.95	IP55	F	S1
XYT315L30P8-200	8	200	380	343.9	200.0	Y	3000	636.7	96.9%	0.95	IP55	F	S1
XYT315L30P8-250	8	250	380	429.8	200.0	Y	3000	795.8	96.9%	0.95	IP55	F	S1
XYT80M15P8-1.5	8	1.5	380	2.8	100.0	Y	1500	9.6	90.1%	0.95	IP55	F	S1
XYT90S15P8-1.1	8	1.1	380	2.1	100.0	Y	1500	7.0	89.2%	0.95	IP55	F	S1
XYT90L15P8-1.5	8	1.5	380	2.8	100.0	Y	1500	9.6	90.1%	0.95	IP55	F	S1
XYT90L15P8-2.2	8	2.2	380	4.0	100.0	Y	1500	14.0	91.1%	0.95	IP55	F	S1
XYT90L15P8-3	8	3	380	5.4	100.0	Y	1500	19.1	91.8%	0.95	IP55	F	S1
XYT90L15P8-3	8	3	220	9.4	100.0	Y	1500	19.1	91.8%	0.95	IP55	F	S1
XYT100L15P8-2.2	8	2.2	380	4.0	100.0	Y	1500	14.0	91.1%	0.95	IP55	F	S1
XYT100L15P8-3	8	3	380	5.4	100.0	Y	1500	19.1	91.8%	0.95	IP55	F	S1
XYT100L15P8-4	8	4	380	7.2	100.0	Y	1500	25.5	92.6%	0.95	IP55	F	S1
XYT112M15P8-4	8	4	380	7.2	100.0	Y	1500	25.5	92.6%	0.95	IP55	F	S1
XYT112M15P8-4	8	4	400	6.90	100.0	Y	1500	25.5	92.6%	0.95	IP55	F	S1
XYT112M15P8-5.5	8	5.5	380	9.8	100.0	Y	1500	35.0	93.2%	0.95	IP55	F	S1
XYT132S15P8-5.5	8	5.5	380	9.8	100.0	Y	1500	35.0	93.2%	0.95	IP55	F	S1
XYT132M15P8-7.5	8	7.5	380	13.3	100.0	Y	1500	47.8	93.8%	0.95	IP55	F	S1
XYT132M15P8-7.5	8	7.5	400	12.7	100.0	Y	1500	47.8	93.8%	0.95	IP55	F	S1
XYT132M15P8-7.5	8	7.5	380	13.3	100.0	Y	1500	47.8	93.8%	0.95	IP55	F	S1
XYT132M15P8-9	8	9	380	15.9	100.0	Y	1500	57.3	94.1%	0.95	IP55	F	S1
XYT132M15P8-11	8	11	380	19.4	100.0	Y	1500	70.0	94.4%	0.95	IP55	F	S1
XYT132M15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT132M15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT160M15P8-11	8	11	380	19.4	100.0	Y	1500	70.0	94.4%	0.95	IP55	F	S1
XYT160M15P8-11	8	11	400	18.4	100.0	Y	1500	70.0	94.4%	0.95	IP55	F	S1
XYT160M15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT160M15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT160L15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT160L15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT160L15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180M15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT180M15P8-17	8	17	380	29.8	100.0	Y	1500	108.2	95.0%	0.95	IP55	F	S1
XYT180M15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT180M15P8-18.5	8	18.5	400	30.8	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT180M15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180L15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180L15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180L15P8-25	8	25	380	43.6	100.0	Y	1500	159.2	95.5%	0.95	IP55	F	S1
XYT180L15P8-30	8	30	380	52.2	100.0	Y	1500	191.0	95.8%	0.95	IP55	F	S1
XYT180L15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT180L15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT180L15P8-55	8	55	380	95.1	100.0	Y	1500	350.2	96.4%	0.95	IP55	F	S1
XYT180L15P8-65	8	65	380	112.2	100.0	Y	1500	413.8	96.5%	0.95	IP55	F	S1
XYT180L15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT180L15P8-90	8	90	380	151.7	100.0	Y	1500	573.0	96.8%	0.97	IP55	F	S1
XYT200L15P8-30	8	30	380	52.2	100.0	Y	1500	191.0	95.8%	0.95	IP55	F	S1
XYT200L15P8-30	8	30	400	49.6	100.0	Y	1500	191.0	95.8%	0.95	IP55	F	S1
XYT200L15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT200L15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT200L15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT225S15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT225S15P8-37	8	37	400	61.0	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT225S15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT225M15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT225M15P8-55	8	55	380	95.1	100.0	Y	1500	350.2	96.4%	0.95	IP55	F	S1
XYT225M15P8-65	8	65	380	112.2	100.0	Y	1500	413.8	96.5%	0.95	IP55	F	S1
XYT225M15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT250M15P8-55	8	55	380	95.1	100.0	Y	1500	350.2	96.4%	0.95	IP55	F	S1
XYT250M15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT250M15P8-90	8	90	380	154.9	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT250M15P8-90	8	90	380	154.9	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT280S15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT280S15P8-75	8	75	400	122.9	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT280M15P8-90	8	90	380	154.9	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT280M15P8-90	8	90	400	147.2	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT280M15P8-110	8	110	380	189.7	100.0	Y	1500	700.3	96.6%	0.95	IP55	F	S1
XYT280M15P8-132	8	132	380	227.4	100.0	Y	1500	840.4	96.7%	0.95	IP55	F	S1
XYT315S15P8-110	8	110	380	189.7	100.0	Y	1500	700.3	96.6%	0.95	IP55	F	S1
XYT315S15P8-132	8	132	380	227.4	100.0	Y	1500	840.4	96.7%	0.95	IP55	F	S1
XYT315M15P8-132	8	132	380	227.4	100.0	Y	1500	840.4	96.7%	0.95	IP55	F	S1
XYT315M15P8-160	8	160	380	275.1	100.0	Y	1500	1018.7	96.9%	0.95	IP55	F	S1
XYT315L15P8-160	8	160	380	275.1	100.0	Y	1500	1018.7	96.9%	0.95	IP55	F	S1
XYT315L15P8-200	8	200	380	343.2	100.0	Y	1500	1273.3	97.1%	0.95	IP55	F	S1
XYT315L15P8-220	8	220	380	377.5	100.0	Y	1500	1400.7	97.1%	0.95	IP55	F	S1
XYT315L15P8-250	8	250	380	428.9	100.0	Y	1500	1591.7	97.1%	0.95	IP55	F	S1
XYT355M15P8-220	8	220	380	377.5	100.0	Y	1500	1400.7	97.1%	0.95	IP55	F	S1
XYT355M15P8-250	8	250	380	428.9	100.0	Y	1500	1591.7	97.1%	0.95	IP55	F	S1
XYT355M15P8-280	8	280	380	480.4	100.0	Y	1500	1782.7	97.1%	0.95	IP55	F	S1
XYT355L15P8-315	8	315	380	540.5	100.0	Y	1500	2005.5	97.1%	0.95	IP55	F	S1
XYT355L15P8-315	8	355	380	609.1	100.0	Y	1500	2260.2	97.1%	0.95	IP55	F	S1
XYT355L15P8-355	8	355	380	609.1	100.0	Y	1500	2260.2	97.1%	0.95	IP55	F	S1
XYT355L15P8-400	8	400	380	686.3	100.0	Y	1500	2546.7	97.1%	0.95	IP55	F	S1
XYT355L15P8-450	8	450	380	772.1	100.0	Y	1500	2865.0	97.1%	0.95	IP55	F	S1
XYT90S10P8-0.75	8	0.75	380	1.5	66.7	Y	1000	7.2	86.0%	0.95	IP55	F	S1
XYT90L10P8-1.1	8	1.1	380	2.1	66.7	Y	1000	10.5	87.5%	0.95	IP55	F	S1
XYT90L10P8-1.5	8	1.5	380	2.8	66.7	Y	1000	14.3	88.6%	0.95	IP55	F	S1
XYT100L10P8-1.5	8	1.5	380	2.8	66.7	Y	1000	14.3	88.6%	0.95	IP55	F	S1
XYT100L10P8-2.2	8	2.2	380	4.1	66.7	Y	1000	21.0	89.9%	0.95	IP55	F	S1
XYT112M10P8-2.2	8	2.2	380	4.1	66.7	Y	1000	21.0	89.9%	0.95	IP55	F	S1
XYT112M10P8-3	8	3	380	5.5	66.7	Y	1000	28.7	90.8%	0.95	IP55	F	S1
XYT112M10P8-4	8	4	380	7.3	66.7	Y	1000	38.2	91.6%	0.95	IP55	F	S1
XYT112M10P8-5.5	8	5.5	380	9.9	66.7	Y	1000	52.5	92.4%	0.95	IP55	F	S1
XYT112L10P8-5.5	8	5.5	380	9.9	66.7	Y	1000	52.5	92.4%	0.95	IP55	F	S1
XYT132S10P8-3	8	3	380	5.5	66.7	Y	1000	28.7	90.8%	0.95	IP55	F	S1
XYT132M10P8-4	8	4	380	7.3	66.7	Y	1000	38.2	91.6%	0.95	IP55	F	S1
XYT132M10P8-5.5	8	5.5	380	9.9	66.7	Y	1000	52.5	92.4%	0.95	IP55	F	S1
XYT132M10P8-7.5	8	7.5	380	13.4	66.7	Y	1000	71.6	93.0%	0.95	IP55	F	S1
XYT160M10P8-7.5	8	7.5	380	13.4	66.7	Y	1000	71.6	93.0%	0.95	IP55	F	S1
XYT160L10P8-11	8	11	380	19.5	66.7	Y	1000	105.1	93.8%	0.95	IP55	F	S1
XYT160L10P8-11	8	11	400	18.6	66.7	Y	1000	105.1	93.8%	0.95	IP55	F	S1
XYT160L10P8-13	8	13	380	23.0	66.7	Y	1000	124.2	94.1%	0.95	IP55	F	S1
XYT160L10P8-15	8	15	380	26.5	66.7	Y	1000	143.3	94.4%	0.95	IP55	F	S1
XYT180L10P8-15	8	15	380	26.5	66.7	Y	1000	143.3	94.4%	0.95	IP55	F	S1
XYT180L10P8-15	8	15	380	26.5	66.7	Y	1000	143.3	94.4%	0.95	IP55	F	S1
XYT180L10P8-18.5	8	18.5	380	32.5	66.7	Y	1000	176.7	94.7%	0.95	IP55	F	S1
XYT180L10P8-22	8	22	380	38.6	66.7	Y	1000	210.1	95.0%	0.95	IP55	F	S1
XYT200L10P8-18.5	8	18.5	380	32.5	66.7	Y	1000	176.7	94.7%	0.95	IP55	F	S1
XYT200L10P8-22	8	22	380	38.6	66.7	Y	1000	210.1	95.0%	0.95	IP55	F	S1
XYT200L10P8-25	8	25	380	43.7	66.7	Y	1000	238.8	95.2%	0.95	IP55	F	S1
XYT200L10P8-30	8	30	380	52.4	66.7	Y	1000	286.5	95.4%	0.95	IP55	F	S1
XYT225M10P8-30	8	30	380	52.4	66.7	Y	1000	286.5	95.4%	0.95	IP55	F	S1
XYT225M10P8-37	8	37	380	64.4	66.7	Y	1000	353.4	95.7%	0.95	IP55	F	S1
XYT225M10P8-55	8	55	380	95.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT225M10P8-55	8	55	415	87.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT250M10P8-37	8	37	380	64.4	66.7	Y	1000	353.4	95.7%	0.95	IP55	F	S1
XYT250M10P8-45	8	45	380	78.2	66.7	Y	1000	429.8	95.9%	0.95	IP55	F	S1
XYT250M10P8-55	8	55	380	95.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT280S10P8-45	8	45	380	78.2	66.7	Y	1000	429.8	95.9%	0.95	IP55	F	S1
XYT280M10P8-55	8	55	380	95.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT280M10P8-75	8	75	380	129.6	66.7	Y	1000	716.3	96.4%	0.95	IP55	F	S1
XYT315S10P8-75	8	75	380	129.6	66.7	Y	1000	716.3	96.4%	0.95	IP55	F	S1
XYT315S10P8-90	8	90	380	155.2	66.7	Y	1000	859.5	96.6%	0.95	IP55	F	S1
XYT315M10P8-90	8	90	380	155.2	66.7	Y	1000	859.5	96.6%	0.95	IP55	F	S1
XYT315M10P8-90	8	90	400	147.5	66.7	Y	1000	859.5	96.6%	0.95	IP55	F	S1
XYT315M10P8-110	8	110	380	190.1	66.7	Y	1000	1050.5	96.4%	0.95	IP55	F	S1
XYT315L10P8-110	8	110	380	190.1	66.7	Y	1000	1050.5	96.4%	0.95	IP55	F	S1
XYT315L10P8-110	8	110	400	180.6	66.7	Y	1000	1050.5	96.4%	0.95	IP55	F	S1
XYT315L10P8-132	8	132	380	227.7	66.7	Y	1000	1260.6	96.6%	0.95	IP55	F	S1
XYT315L10P8-132	8	132	400	216.3	66.7	Y	1000	1260.6	96.6%	0.95	IP55	F	S1
XYT315L10P8-160	8	160	380	275.7	66.7	Y	1000	1528.0	96.7%	0.95	IP55	F	S1
XYT355M10P8-160	8	160	380	275.7	66.7	Y	1000	1528.0	96.7%	0.95	IP55	F	S1
XYT355M10P8-200	8	200	380	344.2	66.7	Y	1000	1910.0	96.8%	0.95	IP55	F	S1
XYT355M10P8-220	8	220	380	378.6	66.7	Y	1000	2101.0	96.8%	0.95	IP55	F	S1
XYT355L10P8-250	8	250	380	430.3	66.7	Y	1000	2387.5	96.8%	0.95	IP55	F	S1
XYT355L10P8-280	8	280	380	481.9	66.7	Y	1000	2674.0	96.8%	0.95	IP55	F	S1
XYT355L10P8-315	8	315	380	542.1	66.7	Y	1000	3008.3	96.8%	0.95	IP55	F	S1
XYT355L10P8-355	8	355	380	611.0	66.7	Y	1000	3390.3	96.8%	0.95	IP55	F	S1
XYT90L7.5P8-0.55	8	0.55	380	1.1	50.0	Y	750	7.0	81.9%	0.95	IP55	F	S1
XYT90L7.5P8-0.75	8	0.75	380	1.5	50.0	Y	750	9.6	83.2%	0.95	IP55	F	S1
XYT100L7.5P8-0.75	8	0.75	380	1.5	50.0	Y	750	9.6	83.2%	0.95	IP55	F	S1
XYT100L7.5P8-1.1	8	1.1	380	2.2	50.0	Y	750	14.0	85.1%	0.95	IP55	F	S1
XYT100L7.5P8-1.5	8	1.5	380	2.9	50.0	Y	750	19.1	86.5%	0.95	IP55	F	S1
XYT112M7.5P8-1.5	8	1.5	380	2.9	50.0	Y	750	19.1	86.5%	0.95	IP55	F	S1
XYT112M7.5P8-2.2	8	2.2	380	4.2	50.0	Y	750	28.0	88.1%	0.95	IP55	F	S1
XYT132S7.5P8-2.2	8	2.2	380	4.2	50.0	Y	750	28.0	88.1%	0.95	IP55	F	S1
XYT132M7.5P8-3	8	3	380	5.6	50.0	Y	750	38.2	89.2%	0.95	IP55	F	S1
XYT132M7.5P8-4	8	4	380	7.4	50.0	Y	750	50.9	90.2%	0.95	IP55	F	S1
XYT160M7.5P8-4	8	4	380	7.4	50.0	Y	750	50.9	90.2%	0.95	IP55	F	S1
XYT160M7.5P8-5.5	8	5.5	380	10.1	50.0	Y	750	70.0	91.1%	0.95	IP55	F	S1
XYT160M7.5P8-7.5	8	7.5	380	13.6	50.0	Y	750	95.5	91.9%	0.95	IP55	F	S1
XYT160L7.5P8-11	8	11	380	19.7	50.0	Y	750	140.1	92.8%	0.95	IP55	F	S1
XYT180L7.5P8-11	8	11	380	19.7	50.0	Y	750	140.1	92.8%	0.95	IP55	F	S1
XYT180L7.5P8-15	8	15	380	26.8	50.0	Y	750	191.0	93.4%	0.95	IP55	F	S1
XYT200L7.5P8-15	8	15	380	26.8	50.0	Y	750	191.0	93.4%	0.95	IP55	F	S1
XYT200L7.5P8-18.5	8	18.5	380	32.9	50.0	Y	750	235.6	93.8%	0.95	IP55	F	S1
XYT225S7.5P8-18.5	8	18.5	380	32.9	50.0	Y	750	235.6	93.8%	0.95	IP55	F	S1
XYT225M7.5P8-22	8	22	380	38.9	50.0	Y	750	280.1	94.1%	0.95	IP55	F	S1
XYT225M7.5P8-30	8	30	380	52.9	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT250M7.5P8-30	8	30	380	52.9	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT250M7.5P8-30	8	30	400	50.2	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT250M7.5P8-37	8	37	380	65.0	50.0	Y	750	471.1	94.8%	0.95	IP55	F	S1
XYT280S7.5P8-30	8	30	380	52.9	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT280S7.5P8-37	8	37	380	65.0	50.0	Y	750	471.1	94.8%	0.95	IP55	F	S1
XYT280M7.5P8-45	8	45	380	78.8	50.0	Y	750	573.0	95.1%	0.95	IP55	F	S1
XYT280M7.5P8-55	8	55	380	96.1	50.0	Y	750	700.3	95.3%	0.95	IP55	F	S1
XYT315S7.5P8-55	8	55	380	96.1	50.0	Y	750	700.3	95.3%	0.95	IP55	F	S1
XYT315S7.5P8-75	8	75	380	130.6	50.0	Y	750	955.0	95.7%	0.95	IP55	F	S1
XYT315M7.5P8-75	8	75	380	130.6	50.0	Y	750	955.0	95.7%	0.95	IP55	F	S1
XYT315M7.5P8-90	8	90	380	156.5	50.0	Y	750	1146.0	95.8%	0.95	IP55	F	S1
XYT315L7.5P8-90	8	90	380	156.5	50.0	Y	750	1146.0	95.8%	0.95	IP55	F	S1
XYT315L7.5P8-110	8	110	380	191.5	50.0	Y	750	1400.7	95.7%	0.95	IP55	F	S1
XYT315L7.5P8-132	8	132	380	229.3	50.0	Y	750	1680.8	95.9%	0.95	IP55	F	S1

Contact Information

4000-999-510
