耐高温三相异步电动机-无锡市亨达电机有限公司

技术特征

机座范围	H80~280	功率范围	0.18~90kW
额定电压	380V（特殊电压定制）	额定频率	50Hz（特殊频率定制）
极数	2、4、6、8	防护等级	IP54
冷却方式	IC411	绝缘等级	H
工作方式	S1	安装方式	B3、B5、B35
接线方式	Y/∆

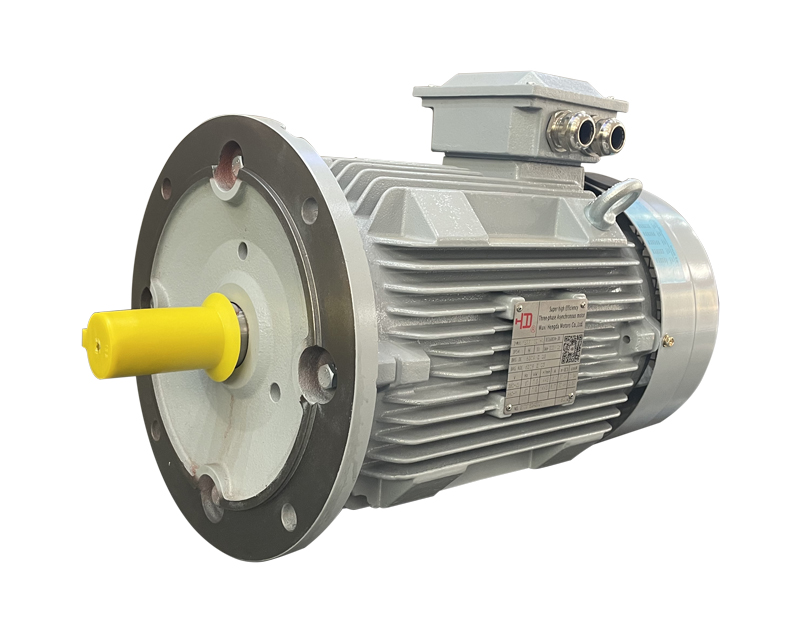

耐高温三相异步电动机

耐高温电动机是我公司在印染机械行业根据用户要求成功研制的新型电机，具有新型的外观，新增了前、后端盖注、排油孔，同时在内盖内增加甩油结构，防止加油时将油脂挤进电机内腔。并且用规范油管接至电机尾部，用户能在不拆装电机的前提下能正常给轴承加油。在使用环境≤55℃时，出轴与法兰等部分温度提高到250℃的恶劣环境下与循环风机直接相连能连续正常工作。轴承全部采用耐高温的特种轴承，电机在运行1500小时左右，即应加注耐高温润滑脂，以保证轴承的使用寿命，并在电机材料上全部采用H级绝缘材料，延长电机使用寿命，保证了印染机械行业的连续生产。具有结构紧凑、性能可靠、方便耐用等特点。

运行条件

-15°C~+75°C

环境空气温度

≤90% (当温度为25°c时)

环境空气月平均最高相对湿度

≤1KM

海拔

规格型号	极数	额定功率	额定电流	额定转速	额定转矩	效率	功率因数	噪声	防护等级	绝缘等级	工作制	接法	频率	电压
规格型号	极数	kW	A	r/min	N·m	η	cosΦ	dB	防护等级	绝缘等级	工作制	接法	Hz	V
YE3GW80M1-2	2	0.75	1.7	2880	2.4	80.7%	0.82	62	IP55	H	S1	Y	50	380
YE3GW80M2-2	2	1.1	2.4	2890	3.5	82.7%	0.83	62	IP55	H	S1	Y	50	380
YE3GW80M1-4	4	0.55	1.4	1430	3.5	80.8%	0.75	56	IP55	H	S1	Y	50	380
YE3GW80M2-4	4	0.75	1.8	1430	4.8	82.5%	0.75	56	IP55	H	S1	Y	50	380
YE3GW80M1-6	6	0.37	1.1	920	3.5	73.5%	0.70	54	IP55	H	S1	Y	50	380
YE3GW80M2-6	6	0.55	1.5	920	5.3	77.2%	0.72	54	IP55	H	S1	Y	50	380
YE3GW80M1-8	8	0.18	0.8	665	2.3	58.7%	0.61	52	IP55	H	S1	Y	50	380
YE3GW80M2-8	8	0.25	1.0	665	3.2	64.1%	0.61	52	IP55	H	S1	Y	50	380
YE3GW90S-2	2	1.5	3.2	2895	4.8	84.2%	0.84	67	IP55	H	S1	Y	50	380
YE3GW90L-2	2	2.2	4.6	2895	7.0	85.9%	0.85	67	IP55	H	S1	Y	50	380
YE3GW90S-4	4	1.1	2.6	1435	7.0	84.1%	0.76	59	IP55	H	S1	Y	50	380
YE3GW90L-4	4	1.5	3.5	1435	9.6	85.3%	0.77	59	IP55	H	S1	Y	50	380
YE3GW90S-6	6	0.75	2.0	950	7.2	78.9%	0.71	57	IP55	H	S1	Y	50	380
YE3GW90L-6	6	1.1	2.8	950	10.5	81.0%	0.73	57	IP55	H	S1	Y	50	380
YE3GW90S-8	8	0.37	1.3	685	4.7	69.3%	0.61	56	IP55	H	S1	Y	50	380
YE3GW90L-8	8	0.55	1.9	685	7.0	73.0%	0.61	56	IP55	H	S1	Y	50	380
YE3GW100L-2	2	3	6.0	2895	9.6	87.1%	0.87	74	IP55	H	S1	Y	50	380
YE3GW100L1-4	4	2.2	4.8	1450	14.0	86.7%	0.81	74	IP55	H	S1	Y	50	380
YE3GW100L2-4	4	3	6.3	1450	19.1	87.7%	0.82	65	IP55	H	S1	Y	50	380
YE3GW100L-6	6	1.5	3.8	955	14.3	82.5%	0.73	61	IP55	H	S1	Y	50	380
YE3GW100L1-8	8	0.75	2.3	705	9.6	75.0%	0.67	59	IP55	H	S1	Y	50	380
YE3GW100L2-8	8	1.1	3.1	705	14.0	77.7%	0.69	59	IP55	H	S1	Y	50	380
YE3GW112M-2	2	4	7.8	2905	12.7	88.1%	0.88	77	IP55	H	S1	∆	50	380
YE3GW112M-4	4	4	8.4	1455	25.5	88.6%	0.82	65	IP55	H	S1	∆	50	380
YE3GW112M-6	6	2.2	5.4	960	21.0	84.3%	0.74	65	IP55	H	S1	Y	50	380
YE3GW112M-8	8	1.5	4.1	705	19.1	79.7%	0.70	61	IP55	H	S1	Y	50	380
YE3GW132S1-2	2	5.5	10.6	2925	17.5	89.2%	0.88	79	IP55	H	S1	∆	50	380
YE3GW132S2-2	2	7.5	14.4	2925	23.9	90.1%	0.88	79	IP55	H	S1	∆	50	380
YE3GW132S-4	4	5.5	11.2	1460	35.0	89.6%	0.83	71	IP55	H	S1	∆	50	380
YE3GW132M-4	4	7.5	15.0	1460	47.8	90.4%	0.84	71	IP55	H	S1	∆	50	380
YE3GW132L-4	4	9	17.9	1460	57.3	90.8%	0.84	71	IP55	H	S1	∆	50	380
YE3GW132L-4	4	9.2	18.3	1460	58.6	90.8%	0.84	71	IP55	H	S1	∆	50	380
YE3GW132S-6	6	3	7.2	970	28.7	85.6%	0.74	69	IP55	H	S1	Y	50	380
YE3GW132M1-6	6	4	9.5	970	38.2	86.8%	0.74	69	IP55	H	S1	∆	50	380
YE3GW132M2-6	6	5.5	12.7	970	52.5	88.0%	0.75	69	IP55	H	S1	∆	50	380
YE3GW132S-8	8	2.2	5.7	710	28.0	81.9%	0.71	64	IP55	H	S1	Y	50	380
YE3GW132M-8	8	3	7.5	710	38.2	83.5%	0.73	64	IP55	H	S1	Y	50	380
YE3GW160M1-2	2	11	20.6	2945	35.0	91.2%	0.89	81	IP55	H	S1	∆	50	380
YE3GW160M2-2	2	15	27.9	2945	47.8	91.9%	0.89	81	IP55	H	S1	∆	50	380
YE3GW160L-2	2	18.5	34.2	2945	58.9	92.4%	0.89	81	IP55	H	S1	∆	50	380
YE3GW160M-4	4	11	21.5	1470	70.0	91.4%	0.85	73	IP55	H	S1	∆	50	380
YE3GW160L-4	4	15	28.8	1470	95.5	92.1%	0.86	73	IP55	H	S1	∆	50	380
YE3GW160M-6	6	7.5	16.2	975	71.6	89.1%	0.79	73	IP55	H	S1	∆	50	380
YE3GW160L-6	6	11	23.1	975	105.1	90.3%	0.80	73	IP55	H	S1	∆	50	380
YE3GW160M1-8	8	4	9.8	720	50.9	84.8%	0.73	68	IP55	H	S1	∆	50	380
YE3GW160M2-8	8	5.5	13.1	720	70.0	86.2%	0.74	68	IP55	H	S1	∆	50	380
YE3GW160L-8	8	7.5	17.4	720	95.5	87.3%	0.75	68	IP55	H	S1	∆	50	380
YE3GW180M-2	2	22	40.5	2960	70.0	92.7%	0.89	83	IP55	H	S1	∆	50	380
YE3GW180M-4	4	18.5	35.3	1475	117.8	92.6%	0.86	76	IP55	H	S1	∆	50	380
YE3GW180L-4	4	22	41.8	1475	140.1	93.0%	0.86	76	IP55	H	S1	∆	50	380
YE3GW180L-6	6	15	30.9	980	143.3	91.2%	0.81	73	IP55	H	S1	∆	50	380
YE3GW180L-8	8	11	25.2	725	140.1	88.6%	0.75	70	IP55	H	S1	∆	50	380
YE3GW200L1-2	2	30	54.9	2960	95.5	93.3%	0.89	84	IP55	H	S1	∆	50	380
YE3GW200L2-2	2	37	67.4	2960	117.8	93.7%	0.89	84	IP55	H	S1	∆	50	380
YE3GW200L-4	4	30	56.6	1475	191.0	93.6%	0.86	76	IP55	H	S1	∆	50	380
YE3GW200L1-6	6	18.5	37.8	980	176.7	91.7%	0.81	73	IP55	H	S1	∆	50	380
YE3GW200L2-6	6	22	44.8	980	210.1	92.2%	0.81	73	IP55	H	S1	∆	50	380
YE3GW200L-8	8	15	33.5	730	191.0	89.6%	0.76	70	IP55	H	S1	∆	50	380
YE3GW225M-2	2	45	80.8	2975	143.3	94.0%	0.90	86	IP55	H	S1	∆	50	380
YE3GW225S-4	4	37	69.6	1480	235.6	93.9%	0.86	78	IP55	H	S1	∆	50	380
YE3GW225M-4	4	45	84.4	1480	286.5	94.2%	0.86	78	IP55	H	S1	∆	50	380
YE3GW225M-6	6	30	59.1	985	286.5	92.9%	0.83	74	IP55	H	S1	∆	50	380
YE3GW225S-8	8	18.5	41.0	730	235.6	90.1%	0.76	73	IP55	H	S1	∆	50	380
YE3GW225M-8	8	22	47.3	735	280.1	90.6%	0.78	73	IP55	H	S1	∆	50	380
YE3GW250M-2	2	55	98.5	2975	175.1	94.3%	0.90	89	IP55	H	S1	∆	50	380
YE3GW250M-4	4	55	102.7	1485	350.2	94.6%	0.86	79	IP55	H	S1	∆	50	380
YE3GW250M-6	6	37	71.7	985	353.4	93.3%	0.84	76	IP55	H	S1	∆	50	380
YE3GW250M-8	8	30	63.2	735	382.0	91.3%	0.79	75	IP55	H	S1	∆	50	380
YE3GW280S-2	2	75	133.7	2980	238.8	94.7%	0.90	91	IP55	H	S1	∆	50	380
YE3GW280M-2	2	90	159.9	2980	286.5	95.0%	0.90	91	IP55	H	S1	∆	50	380
YE3GW280S-4	4	75	136.3	1485	477.5	95.0%	0.88	80	IP55	H	S1	∆	50	380
YE3GW280M-4	4	90	163.2	1485	573.0	95.2%	0.88	80	IP55	H	S1	∆	50	380
YE3GW280S-6	6	45	85.8	990	429.8	93.7%	0.85	78	IP55	H	S1	∆	50	380
YE3GW280M-6	6	55	103.3	990	525.3	94.1%	0.86	78	IP55	H	S1	∆	50	380
YE3GW280S-8	8	37	77.5	735	471.1	91.8%	0.79	76	IP55	H	S1	∆	50	380
YE3GW280M-8	8	45	93.9	735	573.0	92.2%	0.79	76	IP55	H	S1	∆	50	380

规格型号	极数	额定功率	额定电流	额定转速	额定转矩	效率	功率因数	噪声	防护等级	绝缘等级	工作制	接法	频率	电压
规格型号	极数	kW	A	r/min	N·m	η	cosΦ	dB	防护等级	绝缘等级	工作制	接法	Hz	V
YE4GW80M1-2	2	0.75	1.6	2890	2.4	83.5%	0.83	62	IP55	H	S1	Y	50	380
YE4GW80M2-2	2	1.1	2.4	2890	3.5	85.2%	0.83	62	IP55	H	S1	Y	50	380
YE4GW80M1-4	4	0.55	1.3	1440	3.5	83.9%	0.74	56	IP55	H	S1	Y	50	380
YE4GW80M2-4	4	0.75	1.8	1440	4.8	85.7%	0.74	56	IP55	H	S1	Y	50	380
YE4GW80M1-6	6	0.37	1.0	920	3.5	78.0%	0.70	54	IP55	H	S1	Y	50	380
YE4GW80M2-6	6	0.55	1.4	920	5.3	80.9%	0.72	54	IP55	H	S1	Y	50	380
YE4GW80M1-8	8	0.18	0.6	665	2.3	67.2%	0.65	52	IP55	H	S1	Y	50	380
YE4GW80M2-8	8	0.25	0.8	665	3.2	70.8%	0.65	52	IP55	H	S1	Y	50	380
YE4GW90S-2	2	1.5	3.1	2905	4.8	86.5%	0.85	67	IP55	H	S1	Y	50	380
YE4GW90L-2	2	2.2	4.4	2905	7.0	88.0%	0.86	67	IP55	H	S1	Y	50	380
YE4GW90S-4	4	1.1	2.6	1450	7.0	87.2%	0.75	59	IP55	H	S1	Y	50	380
YE4GW90L-4	4	1.5	3.4	1450	9.6	88.2%	0.76	59	IP55	H	S1	Y	50	380
YE4GW90S-6	6	0.75	2.0	960	7.2	82.7%	0.70	57	IP55	H	S1	Y	50	380
YE4GW90L-6	6	1.1	2.8	960	10.5	84.5%	0.70	57	IP55	H	S1	Y	50	380
YE4GW90S-8	8	0.37	1.2	685	4.7	74.3%	0.65	56	IP55	H	S1	Y	50	380
YE4GW90L-8	8	0.55	1.7	685	7.0	77.0%	0.65	56	IP55	H	S1	Y	50	380
YE4GW100L-2	2	3	5.9	2905	9.6	89.1%	0.87	74	IP55	H	S1	Y	50	380
YE4GW100L1-4	4	2.2	4.7	1450	14.0	89.5%	0.79	74	IP55	H	S1	Y	50	380
YE4GW100L2-4	4	3	6.3	1450	19.1	90.4%	0.80	65	IP55	H	S1	Y	50	380
YE4GW100L-6	6	1.5	3.7	960	14.3	85.9%	0.71	61	IP55	H	S1	Y	50	380
YE4GW100L1-8	8	0.75	2.2	705	9.6	78.4%	0.66	59	IP55	H	S1	Y	50	380
YE4GW100L2-8	8	1.1	3.1	705	14.0	80.8%	0.67	59	IP55	H	S1	Y	50	380
YE4GW112M-2	2	4	7.7	2915	12.7	90.0%	0.88	77	IP55	H	S1	∆	50	380
YE4GW112M-4	4	4	8.3	1460	25.5	91.1%	0.80	65	IP55	H	S1	∆	50	380
YE4GW112M-6	6	2.2	5.4	965	21.0	87.4%	0.71	65	IP55	H	S1	Y	50	380
YE4GW112M-8	8	1.5	4.0	715	19.1	82.6%	0.69	61	IP55	H	S1	Y	50	380
YE4GW132S1-2	2	5.5	10.4	2930	17.5	90.9%	0.88	79	IP55	H	S1	∆	50	380
YE4GW132S2-2	2	7.5	14.0	2930	23.9	91.7%	0.89	79	IP55	H	S1	∆	50	380
YE4GW132S-4	4	5.5	11.4	1470	35.0	91.9%	0.80	71	IP55	H	S1	∆	50	380
YE4GW132M-4	4	7.5	15.2	1470	47.8	92.6%	0.81	71	IP55	H	S1	∆	50	380
YE4GW132S-6	6	3	7.2	975	28.7	88.6%	0.71	69	IP55	H	S1	Y	50	380
YE4GW132M1-6	6	4	9.4	975	38.2	89.5%	0.72	69	IP55	H	S1	∆	50	380
YE4GW132M2-6	6	5.5	12.8	975	52.5	90.5%	0.72	69	IP55	H	S1	∆	50	380
YE4GW132S-8	8	2.2	5.7	730	28.0	84.5%	0.70	64	IP55	H	S1	Y	50	380
YE4GW132M-8	8	3	7.6	730	38.2	85.9%	0.70	64	IP55	H	S1	Y	50	380
YE4GW160M1-2	2	11	20.3	2950	35.0	92.6%	0.89	81	IP55	H	S1	∆	50	380
YE4GW160M2-2	2	15	27.4	2950	47.8	93.3%	0.89	81	IP55	H	S1	∆	50	380
YE4GW160L-2	2	18.5	33.7	2950	58.9	93.7%	0.89	81	IP55	H	S1	∆	50	380
YE4GW160M-4	4	11	21.6	1475	70.0	93.3%	0.83	73	IP55	H	S1	∆	50	380
YE4GW160L-4	4	15	28.9	1475	95.5	93.9%	0.84	73	IP55	H	S1	∆	50	380
YE4GW160M-6	6	7.5	16.4	975	71.6	91.3%	0.76	73	IP55	H	S1	∆	50	380
YE4GW160L-6	6	11	23.5	975	105.1	92.3%	0.77	73	IP55	H	S1	∆	50	380
YE4GW160M1-8	8	4	9.8	725	50.9	87.1%	0.71	68	IP55	H	S1	∆	50	380
YE4GW160M2-8	8	5.5	13.1	725	70.0	88.3%	0.72	68	IP55	H	S1	∆	50	380
YE4GW160L-8	8	7.5	17.2	725	95.5	89.3%	0.74	68	IP55	H	S1	∆	50	380
YE4GW180M-2	2	22	40.0	2960	70.0	94.0%	0.89	83	IP55	H	S1	∆	50	380
YE4GW180M-4	4	18.5	35.1	1475	117.8	94.2%	0.85	76	IP55	H	S1	∆	50	380
YE4GW180L-4	4	22	41.6	1475	140.1	94.5%	0.85	76	IP55	H	S1	∆	50	380
YE4GW180L-6	6	15	30.7	985	143.3	92.9%	0.80	73	IP55	H	S1	∆	50	380
YE4GW180L-8	8	11	25.0	730	140.1	90.4%	0.74	70	IP55	H	S1	∆	50	380
YE4GW200L1-2	2	30	54.2	2960	95.5	94.5%	0.89	84	IP55	H	S1	∆	50	380
YE4GW200L2-2	2	37	66.6	2960	117.8	94.8%	0.89	84	IP55	H	S1	∆	50	380
YE4GW200L-4	4	30	56.5	1480	191.0	94.9%	0.85	76	IP55	H	S1	∆	50	380
YE4GW200L1-6	6	18.5	37.6	985	176.7	93.4%	0.80	73	IP55	H	S1	∆	50	380
YE4GW200L2-6	6	22	44.0	985	210.1	93.7%	0.81	73	IP55	H	S1	∆	50	380
YE4GW200L-8	8	15	33.3	735	191.0	91.2%	0.75	70	IP55	H	S1	∆	50	380
YE4GW225M-2	2	45	80.9	2975	143.3	95.0%	0.89	86	IP55	H	S1	∆	50	380
YE4GW225S-4	4	37	69.5	1485	235.6	95.2%	0.85	78	IP55	H	S1	∆	50	380
YE4GW225M-4	4	45	84.3	1485	286.5	95.4%	0.85	78	IP55	H	S1	∆	50	380
YE4GW225M-6	6	30	59.0	985	286.5	94.2%	0.82	74	IP55	H	S1	∆	50	380
YE4GW225S-8	8	18.5	40.9	735	235.6	91.7%	0.75	73	IP55	H	S1	∆	50	380
YE4GW225M-8	8	22	47.8	735	280.1	92.1%	0.76	73	IP55	H	S1	∆	50	380
YE4GW250M-2	2	55	98.5	2975	175.1	95.3%	0.89	89	IP55	H	S1	∆	50	380
YE4GW250M-4	4	55	101.5	1485	350.2	95.7%	0.86	79	IP55	H	S1	∆	50	380
YE4GW250M-6	6	37	71.7	990	353.4	94.5%	0.83	76	IP55	H	S1	∆	50	380
YE4GW250M-8	8	30	63.9	735	382.0	92.7%	0.77	75	IP55	H	S1	∆	50	380
YE4GW280S-2	2	75	133.9	2980	238.8	95.6%	0.89	91	IP55	H	S1	∆	50	380
YE4GW280M-2	2	90	160.4	2980	286.5	95.8%	0.89	91	IP55	H	S1	∆	50	380
YE4GW280S-4	4	75	136.4	1490	477.5	96.0%	0.87	80	IP55	H	S1	∆	50	380
YE4GW280M-4	4	90	161.7	1490	573.0	96.1%	0.88	80	IP55	H	S1	∆	50	380
YE4GW280S-6	6	45	86.9	990	429.8	94.8%	0.83	78	IP55	H	S1	∆	50	380
YE4GW280M-6	6	55	104.6	990	525.3	95.1%	0.84	78	IP55	H	S1	∆	50	380
YE4GW280S-8	8	37	77.4	740	471.1	93.1%	0.78	76	IP55	H	S1	∆	50	380
YE4GW280M-8	8	45	93.9	740	573.0	93.4%	0.78	76	IP55	H	S1	∆	50	380
