技术特征

机座范围	H80~450	功率范围	0.18~1000kW
额定电压	380V（特殊电压定制）	额定频率	50Hz（特殊频率定制）
效率等级	IE3	极数	2、4、6、8极
防护等级	IP55	冷却方式	IC411、IC416
绝缘等级	F	工作方式	S1
安装方式	B3、B5、B35、B14、B34、V1	接线方式	Y/∆

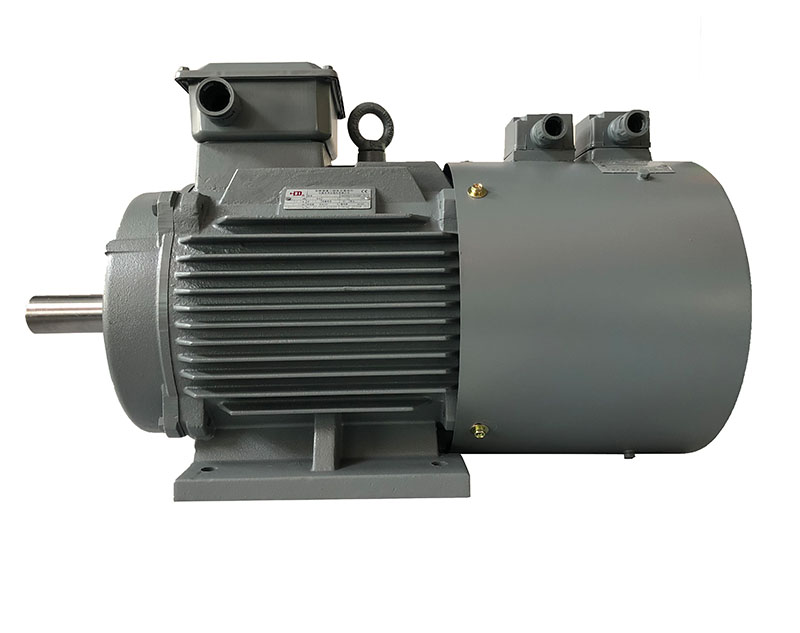

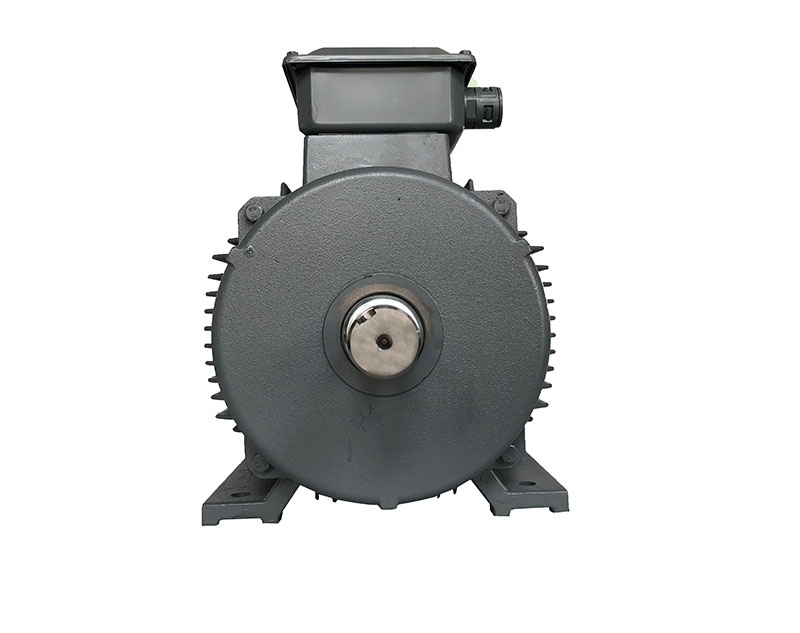

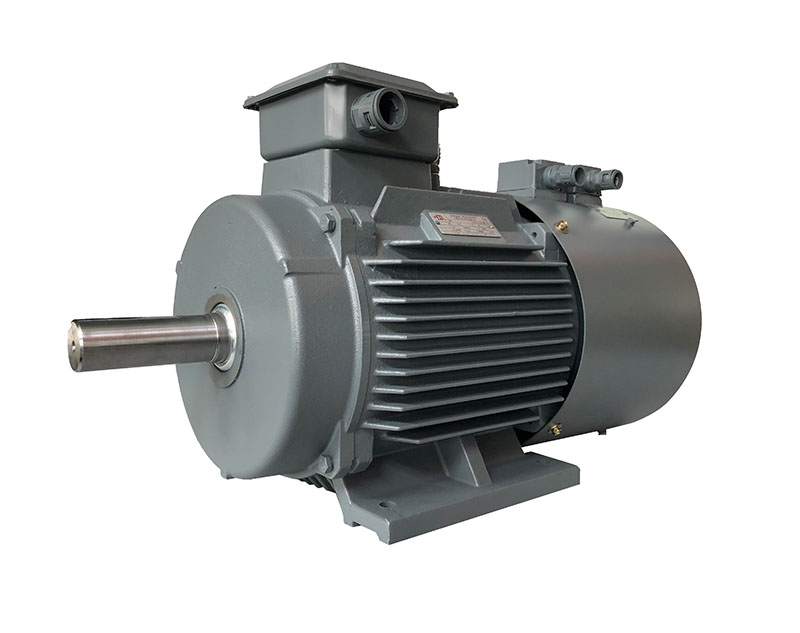

YE3VP系列变频调速三相异步电动机

YE3VP系列电动机是根据国家政策和响应市场的需求，开发研制的高效变频调速电动机。它具有效率高、噪音低，振动小，调速范围广，运行可靠等优点。 YE3VP系列电机采用优越的电磁设计方案、性能优良的原材料、可靠精良的制作工艺及检测措施，以使电机在低速时恒转矩输出及在高频段保持一定的过载能力，在变频器高频载波引起的过电压方面具有很强的适应能力。同时，该系列电机采用独立的风机冷却，以保证电机在低速长期运行时温升不超过允许值。 YE3VP系列电机可方便的安装制动装置，编码器，测速机以实现快速制动和自动控制。该系列电机广泛用于纺织、风机，水泵调节流量及机床、化工冶金、钢铁等行业的恒转矩(基频以下)和恒功率(基频以上)调速，并可以满足造纸、电缆、塑料、包装、电梯、起重等特殊领域的需要。

运行条件

-15°C~+40°C

环境空气温度

≤90% (当温度为25°c时)

环境空气月平均最高相对湿度

≤1KM

海拔

型号	极数	额定功率 kW	额定电流 A	额定转速 r/min	额定转矩 N.m	效率 η	功率因数 cosφ	防护等级 IP	绝缘等级 CL.	工作制 S	接法	额定频率 Hz	恒转矩 Hz	恒功率 Hz	电压 V
YE3VP80M1-2	2	0.75	1.7	2880	2.4	80.7%	0.82	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M2-2	2	1.1	2.4	2890	3.5	82.7%	0.83	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M1-4	4	0.55	1.4	1430	3.5	80.8%	0.75	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M2-4	4	0.75	1.8	1430	4.8	82.5%	0.75	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M1-6	6	0.37	1.1	920	3.5	73.5%	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M2-6	6	0.55	1.5	920	5.3	77.2%	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M1-8	8	0.18	0.8	665	2.3	58.7%	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M2-8	8	0.25	1.0	665	3.2	64.1%	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90S-2	2	1.5	3.2	2895	4.8	84.2%	0.84	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90L-2	2	2.2	4.6	2895	7.0	85.9%	0.85	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90S-4	4	1.1	2.6	1435	7.0	84.1%	0.76	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90L-4	4	1.5	3.5	1435	9.6	85.3%	0.77	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90S-6	6	0.75	2.0	950	7.2	78.9%	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90L-6	6	1.1	2.8	950	10.5	81.0%	0.73	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90S-8	8	0.37	1.3	685	4.7	69.3%	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90L-8	8	0.55	1.9	685	7.0	73.0%	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L-2	2	3	6.0	2895	9.6	87.1%	0.87	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L1-4	4	2.2	4.8	1450	14.0	86.7%	0.81	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L2-4	4	3	6.3	1450	19.1	87.7%	0.82	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L-6	6	1.5	3.8	955	14.3	82.5%	0.73	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L1-8	8	0.75	2.3	705	9.6	75.0%	0.67	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L2-8	8	1.1	3.1	705	14.0	77.7%	0.69	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP112M-2	2	4	7.8	2905	12.7	88.1%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP112M-4	4	4	8.4	1455	25.5	88.6%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP112M-6	6	2.2	5.4	960	21.0	84.3%	0.74	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP112M-8	8	1.5	4.1	705	19.1	79.7%	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP132S1-2	2	5.5	10.6	2925	17.5	89.2%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP132S2-2	2	7.5	14.4	2925	23.9	90.1%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP132S-4	4	5.5	11.2	1460	35.0	89.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP132M-4	4	7.5	15.0	1460	47.8	90.4%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP132S-6	6	3	7.2	970	28.7	85.6%	0.74	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP132M1-6	6	4	9.5	970	38.2	86.8%	0.74	IP55	F	S1	△	50	5~50	50~100	380
YE3VP132M2-6	6	5.5	12.7	970	52.5	88.0%	0.75	IP55	F	S1	△	50	5~50	50~100	380
YE3VP132S-8	8	2.2	5.7	710	28.0	81.9%	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP132M-8	8	3	7.5	710	38.2	83.5%	0.73	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP160M1-2	2	11	20.6	2945	35.0	91.2%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160M2-2	2	15	27.9	2945	47.8	91.9%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160L-2	2	18.5	34.2	2945	58.9	92.4%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160M-4	4	11	21.5	1470	70.0	91.4%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160L-4	4	15	28.8	1470	95.5	92.1%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160M-6	6	7.5	16.2	975	71.6	89.1%	0.79	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160L-6	6	11	23.1	975	105.1	90.3%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160M1-8	8	4	9.8	720	50.9	84.8%	0.73	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160M2-8	8	5.5	13.1	720	70.0	86.2%	0.74	IP55	F	S1	△	50	5~50	50~100	380
YE3VP160L-8	8	7.5	17.4	720	95.5	87.3%	0.75	IP55	F	S1	△	50	5~50	50~100	380
YE3VP180M-2	2	22	40.5	2960	70.0	92.7%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP180M-4	4	18.5	35.3	1475	117.8	92.6%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP180L-4	4	22	41.8	1475	140.1	93.0%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP180L-6	6	15	30.9	980	143.3	91.2%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP180L-8	8	11	25.2	725	140.1	88.6%	0.75	IP55	F	S1	△	50	5~50	50~100	380
YE3VP200L1-2	2	30	54.9	2960	95.5	93.3%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP200L2-2	2	37	67.4	2960	117.8	93.7%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP200L-4	4	30	56.6	1475	191.0	93.6%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP200L1-6	6	18.5	37.8	980	176.7	91.7%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP200L2-6	6	22	44.8	980	210.1	92.2%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP200L-8	8	15	33.5	730	191.0	89.6%	0.76	IP55	F	S1	△	50	5~50	50~100	380
YE3VP225M-2	2	45	80.8	2975	143.3	94.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP225S-4	4	37	69.6	1480	235.6	93.9%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP225M-4	4	45	84.4	1480	286.5	94.2%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP225M-6	6	30	59.1	985	286.5	92.9%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP225S-8	8	18.5	41.0	730	235.6	90.1%	0.76	IP55	F	S1	△	50	5~50	50~100	380
YE3VP225M-8	8	22	47.3	735	280.1	90.6%	0.78	IP55	F	S1	△	50	5~50	50~100	380
YE3VP250M-2	2	55	98.5	2975	175.1	94.3%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP250M-4	4	55	102.7	1485	350.2	94.6%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP250M-6	6	37	71.7	985	353.4	93.3%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP250M-8	8	30	63.2	735	382.0	91.3%	0.79	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280S-2	2	75	133.7	2980	238.8	94.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280M-2	2	90	159.9	2980	286.5	95.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280S-4	4	75	136.3	1485	477.5	95.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280M-4	4	90	163.2	1485	573.0	95.2%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280S-6	6	45	85.8	990	429.8	93.7%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280M-6	6	55	103.3	990	525.3	94.1%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280S-8	8	37	77.5	735	471.1	91.8%	0.79	IP55	F	S1	△	50	5~50	50~100	380
YE3VP280M-8	8	45	93.9	735	573.0	92.2%	0.79	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315S-2	2	110	195.1	2980	350.2	95.2%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315M-2	2	132	233.6	2980	420.2	95.4%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L1-2	2	160	279.4	2980	509.3	95.6%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L2-2	2	200	348.6	2980	636.7	95.8%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315S-4	4	110	196.8	1490	700.3	95.4%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315M-4	4	132	235.7	1490	840.4	95.6%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L1-4	4	160	285.1	1490	1018.7	95.8%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L2-4	4	200	351.7	1490	1273.3	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315S-6	6	75	143.4	990	716.3	94.6%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315M-6	6	90	169.5	990	859.5	94.9%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L1-6	6	110	206.8	990	1050.5	95.1%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L2-6	6	132	244.5	990	1260.6	95.4%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315S-8	8	55	111.5	745	700.3	92.5%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315M-8	8	75	151.1	745	955.0	93.1%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L1-8	8	90	178.5	745	1146.0	93.4%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L2-8	8	110	217.5	745	1400.7	93.7%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP315L3-8	8	132	260.2	745	1680.8	94.0%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M-2	2	250	435.7	2980	795.8	95.8%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M2-2	2	280	488.0	2980	891.3	95.8%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L-2	2	315	549.0	2980	1002.8	95.8%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L2-2	2	355	625.6	2980	1130.1	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M0-4	4	220	386.9	1490	1400.7	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M-4	4	250	439.6	1490	1591.7	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M2-4	4	280	492.4	1490	1782.7	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L-4	4	315	553.9	1490	2005.5	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L2-4	4	355	638.5	1490	2260.2	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M1-6	6	160	295.7	990	1528.0	95.6%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M2-6	6	200	364.6	990	1910.0	95.8%	0.87	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L-6	6	250	455.7	990	2387.5	95.8%	0.87	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L2-6	6	280	541.6	995	2674.0	95.8%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M1-8	8	132	260.2	745	1680.8	94.0%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M2-8	8	160	314.4	745	2037.3	94.3%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355M3-8	8	185	358.4	745	2355.7	94.5%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L-8	8	200	387.0	745	2546.7	94.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355L2-8	8	220	436.2	745	2801.3	94.6%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X1-4	4	355	638.5	1490	2260.2	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X2-4	4	400	719.4	1490	2546.7	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X3-4	4	450	809.3	1490	2865.0	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X4-4	4	500	899.3	1490	3183.3	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X1-2	2	355	625.6	2980	1130.1	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X2-2	2	400	704.9	2980	1273.3	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X3-2	2	450	793.0	2980	1432.5	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X4-2	2	500	881.1	2980	1591.7	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X1-4	4	355	638.5	1490	2260.2	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X2-4	4	375	674.4	1490	2387.5	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X1-6	6	315	609.3	995	3008.3	95.8%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X2-6	6	355	686.6	995	3390.3	95.8%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X21-6	6	380	735.0	995	3629.0	95.8%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X3-6	6	400	764.3	995	3820.0	95.8%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X1-8	8	220	441.7	745	2801.3	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X2-8	8	250	501.9	745	3183.3	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X3-8	8	280	562.1	745	3565.3	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP355X4-8	8	315	632.4	745	4011.0	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M1-2	2	355	625.6	2980	1130.1	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M2-2	2	400	704.9	2980	1273.3	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M3-2	2	450	793.0	2980	1432.5	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L-2	2	500	881.1	2980	1591.7	95.8%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L1-2	2	560	976.0	2980	1782.7	95.8%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L2-2	2	630	1098.0	2980	2005.5	95.8%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L3-2	2	710	1237.4	2980	2260.2	95.8%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M1-4	4	355	638.5	1490	2260.2	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M2-4	4	400	719.4	1490	2546.7	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M3-4	4	450	809.3	1490	2865.0	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L1-4	4	500	899.3	1490	3183.3	96.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L2-4	4	560	995.9	1490	3565.3	96.0%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L3-4	4	630	1120.3	1490	4011.0	96.0%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M1-6	6	315	609.3	995	3008.3	95.8%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M2-6	6	355	686.6	995	3390.3	95.8%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L1-6	6	400	764.3	995	3820.0	95.8%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L2-6	6	450	859.9	995	4297.5	95.8%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L3-6	6	500	955.4	995	4775.0	95.8%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L4-6	6	550	1051.0	995	5252.5	95.8%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M1-8	8	250	501.9	745	3183.3	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400M2-8	8	280	562.1	745	3565.3	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L1-8	8	315	632.4	745	4011.0	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L2-8	8	355	712.7	745	4520.3	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP400L3-8	8	400	803.1	745	5093.3	94.6%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X1-4	4	710	1262.6	1490	4520.3	96.0%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X2-4	4	800	1406.8	1490	5093.3	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X3-4	4	900	1582.7	1490	5730.0	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X4-4	4	1000	1758.6	1490	6366.7	96.0%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X1-6	6	630	1189.5	995	6016.5	95.8%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X2-6	6	670	1265.0	995	6398.5	95.8%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X3-6	6	710	1340.5	995	6780.5	95.8%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X4-6	6	750	1416.1	995	7162.5	95.8%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X5-6	6	800	1510.5	995	7640.0	95.8%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X1-8	8	450	892.3	745	5730.0	94.6%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X2-8	8	500	991.4	745	6366.7	94.6%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X3-8	8	560	1110.4	745	7130.7	94.6%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE3VP450X4-8	8	630	1249.2	745	8022.0	94.6%	0.81	IP55	F	S1	△	50	5~50	50~100	380

联系方式

4000-999-510
