YE4VP系列变频调速三相异步电动机-无锡市亨达电机有限公司

技术特征

机座范围	H80~450	功率范围	0.18~1000kW
额定电压	380V（特殊电压定制）	额定频率	50Hz（特殊频率定制）
效率等级	IE4	极数	2、4、6、8极
防护等级	IP55	冷却方式	IC411、IC416
绝缘等级	F	工作方式	S1
安装方式	B3、B5、B35、B14、B34、V1	接线方式	Y/∆

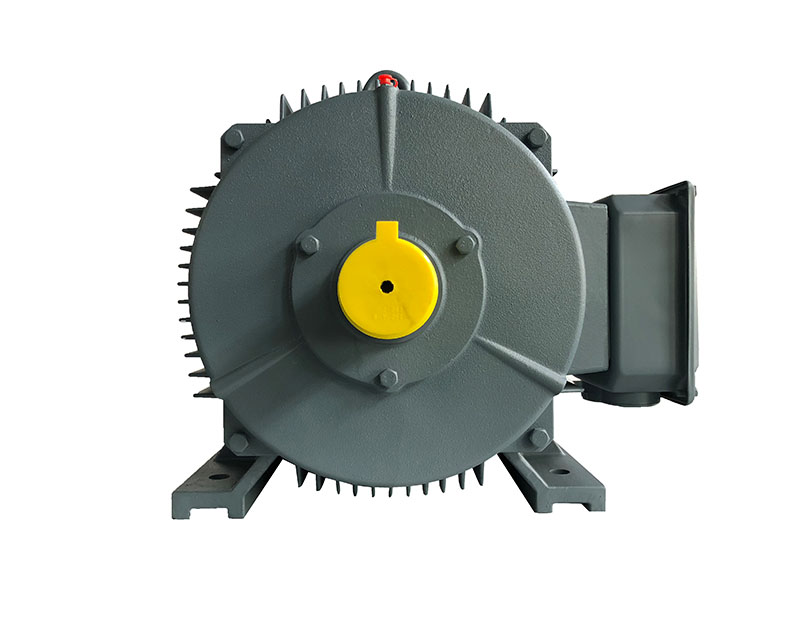

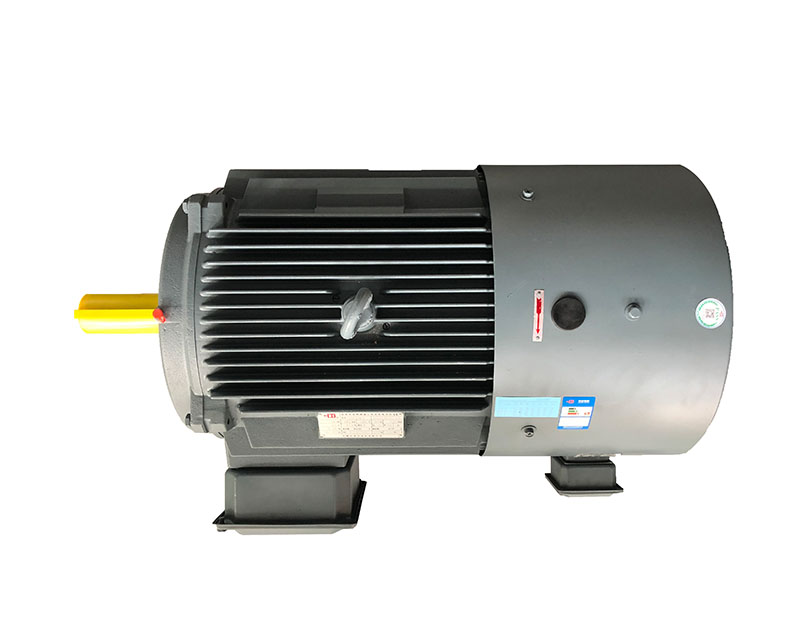

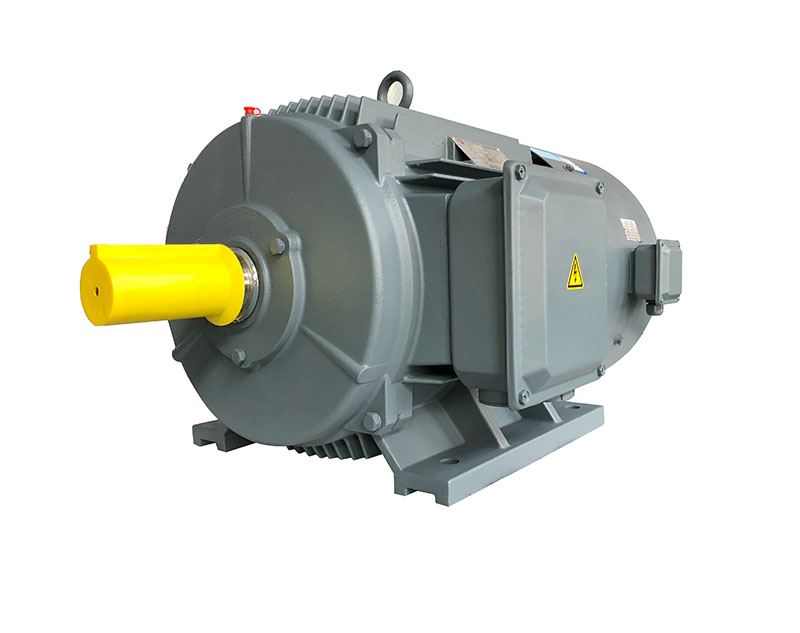

YE4VP系列变频调速三相异步电动机

YE4VP系列电动机是根据国家政策和响应市场的需求，开发研制的高效变频调速电动机。它具有效率高、噪音低，振动小，调速范围广，运行可靠等优点。 YE4VP系列电机采用优越的电磁设计方案、性能优良的原材料、可靠精良的制作工艺及检测措施，以使电机在低速时恒转矩输出及在高频段保持一定的过载能力，在变频器高频载波引起的过电压方面具有很强的适应能力。同时，该系列电机采用独立的风机冷却，以保证电机在低速长期运行时温升不超过允许值。 YE4VP系列电机可方便的安装制动装置，编码器，测速机以实现快速制动和自动控制。该系列电机广泛用于纺织、风机，水泵调节流量及机床、化工冶金、钢铁等行业的恒转矩(基频以下)和恒功率(基频以上)调速，并可以满足造纸、电缆、塑料、包装、电梯、起重等特殊领域的需要。

运行条件

-15°C~+40°C

环境空气温度

≤90% (当温度为25°c时)

环境空气月平均最高相对湿度

≤1KM

海拔

型号	极数	额定功率 kW	额定电流 A	额定转速 r/min	额定转矩 N.m	效率 η	功率因数 cosφ	防护等级 IP	绝缘等级 CL.	工作制 S	接法	额定频率 Hz	恒转矩 Hz	恒功率 Hz	电压 V
YE4VP80M1-2	2	0.75	1.6	2890	2.4	83.5%	0.83	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP80M2-2	2	1.1	2.4	2890	3.5	85.2%	0.83	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP80M1-4	4	0.55	1.3	1440	3.5	83.9%	0.74	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP80M2-4	4	0.75	1.8	1440	4.8	85.7%	0.74	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP80M1-6	6	0.37	1.0	920	3.5	78.0%	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP80M2-6	6	0.55	1.4	920	5.3	80.9%	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP80M1-8	8	0.18	0.6	665	1.7	67.2%	0.65	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP80M2-8	8	0.25	0.8	665	2.4	70.8%	0.65	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90S-2	2	1.5	3.1	2905	4.8	86.5%	0.85	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90L-2	2	2.2	4.4	2905	7.0	88.0%	0.86	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90S-4	4	1.1	2.6	1450	7.0	87.2%	0.75	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90L-4	4	1.5	3.4	1450	9.6	88.2%	0.76	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90S-6	6	0.75	2.0	960	7.2	82.7%	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90L-6	6	1.1	2.8	960	10.5	84.5%	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90S-8	8	0.37	1.2	685	4.7	74.3%	0.65	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP90L-8	8	0.55	1.7	685	7.0	77.0%	0.65	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP100L-2	2	3	5.9	2905	9.6	89.1%	0.87	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP100L1-4	4	2.2	4.7	1450	14.0	89.5%	0.79	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP100L2-4	4	3	6.3	1450	19.1	90.4%	0.80	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP100L-6	6	1.5	3.7	960	14.3	85.9%	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP100L1-8	8	0.75	2.2	705	9.6	78.4%	0.66	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP100L2-8	8	1.1	3.1	705	14.0	80.8%	0.67	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP112M-2	2	4	7.7	2915	12.7	90.0%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP112M-4	4	4	8.3	1460	25.5	91.1%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP112M-6	6	2.2	5.4	965	21.0	87.4%	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP112M-8	8	1.5	4.0	715	19.1	82.6%	0.69	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP132S1-2	2	5.5	10.4	2950	17.5	90.9%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP132S2-2	2	7.5	14.0	2950	23.9	91.7%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP132S-4	4	5.5	11.4	1470	35.0	91.9%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP132M-4	4	7.5	15.2	1470	47.8	92.6%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP132S-6	6	3	7.2	975	28.7	88.6%	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP132M1-6	6	4	9.4	975	38.2	89.5%	0.72	IP55	F	S1	△	50	5~50	50~100	380
YE4VP132M2-6	6	5.5	12.8	975	52.5	90.5%	0.72	IP55	F	S1	△	50	5~50	50~100	380
YE4VP132S-8	8	2.2	5.7	730	28.0	84.5%	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP132M-8	8	3	7.6	730	38.2	85.9%	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE4VP160M1-2	2	11	20.3	2955	35.0	92.6%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160M2-2	2	15	27.4	2955	47.8	93.3%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160L-2	2	18.5	33.7	2955	58.9	93.7%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160M-4	4	11	21.6	1475	70.0	93.3%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160L-4	4	15	28.9	1475	95.5	93.9%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160M-6	6	7.5	16.4	975	71.6	91.3%	0.76	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160L-6	6	11	23.5	975	105.1	92.3%	0.77	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160M1-8	8	4	9.8	725	50.9	87.1%	0.71	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160M2-8	8	5.5	13.1	725	70.0	88.3%	0.72	IP55	F	S1	△	50	5~50	50~100	380
YE4VP160L-8	8	7.5	17.2	725	95.5	89.3%	0.74	IP55	F	S1	△	50	5~50	50~100	380
YE4VP180M-2	2	22	40.0	2960	70.0	94.0%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP180M-4	4	18.5	35.1	1475	117.8	94.2%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE4VP180L-4	4	22	41.6	1475	140.1	94.5%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE4VP180L-6	6	15	30.7	985	143.3	92.9%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP180L-8	8	11	25.0	730	140.1	90.4%	0.74	IP55	F	S1	△	50	5~50	50~100	380
YE4VP200L1-2	2	30	54.2	2960	95.5	94.5%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP200L2-2	2	37	66.6	2960	117.8	94.8%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP200L-4	4	30	56.5	1480	191.0	94.9%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE4VP200L1-6	6	18.5	37.6	985	176.7	93.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP200L2-6	6	22	44.0	985	210.1	93.7%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP200L-8	8	15	33.3	735	191.0	91.2%	0.75	IP55	F	S1	△	50	5~50	50~100	380
YE4VP225M-2	2	45	80.9	2975	143.3	95.0%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP225S-4	4	37	69.5	1485	235.6	95.2%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE4VP225M-4	4	45	84.3	1485	286.5	95.4%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE4VP225M-6	6	30	59.0	985	286.5	94.2%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP225S-8	8	18.5	40.9	735	235.6	91.7%	0.75	IP55	F	S1	△	50	5~50	50~100	380
YE4VP225M-8	8	22	47.8	735	280.1	92.1%	0.76	IP55	F	S1	△	50	5~50	50~100	380
YE4VP250M-2	2	55	98.5	2975	175.1	95.3%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP250M-4	4	55	101.5	1485	350.2	95.7%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE4VP250M-6	6	37	71.7	990	353.4	94.5%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP250M-8	8	30	63.9	735	382.0	92.7%	0.77	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280S-2	2	75	133.9	2980	238.8	95.6%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280M-2	2	90	160.4	2980	286.5	95.8%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280S-4	4	75	136.4	1490	477.5	96.0%	0.87	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280M-4	4	90	161.7	1490	573.0	96.1%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280S-6	6	45	86.9	990	429.8	94.8%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280M-6	6	55	104.6	990	525.3	95.1%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280S-8	8	37	77.4	740	471.1	93.1%	0.78	IP55	F	S1	△	50	5~50	50~100	380
YE4VP280M-8	8	45	93.9	740	573.0	93.4%	0.78	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315S-2	2	110	195.6	2985	350.2	96.0%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315M-2	2	132	234.2	2985	420.2	96.2%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L1-2	2	160	283.6	2985	509.3	96.3%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L2-2	2	200	353.8	2985	636.7	96.5%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315S-4	4	110	195.0	1490	700.3	96.3%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315M-4	4	132	233.8	1490	840.4	96.4%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L1-4	4	160	279.6	1490	1018.7	96.6%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L2-4	4	200	349.2	1490	1273.3	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315S-6	6	75	142.2	990	716.3	95.4%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315M-6	6	90	168.3	990	859.5	95.6%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L1-6	6	110	205.2	990	1050.5	95.8%	0.85	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L2-6	6	132	242.9	990	1260.6	96.0%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315S-8	8	55	111.5	745	700.3	93.7%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315M-8	8	75	151.2	745	955.0	94.2%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L1-8	8	90	178.8	745	1146.0	94.4%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L2-8	8	110	217.9	745	1400.7	94.7%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP315L3-8	8	132	260.9	745	1680.8	94.9%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M-2	2	250	432.6	2990	795.8	96.5%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M2-2	2	280	484.5	2990	891.3	96.5%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L-2	2	315	545.0	2990	1002.8	96.5%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L2-2	2	355	621.1	2990	1130.1	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M0-4	4	220	384.1	1490	1400.7	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M-4	4	250	436.5	1490	1591.7	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M2-4	4	280	488.8	1490	1782.7	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L-4	4	315	549.9	1490	2005.5	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L2-4	4	355	633.9	1490	2260.2	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M1-6	6	160	293.8	990	1528.0	96.2%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M2-6	6	200	366.9	990	1910.0	96.3%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L-6	6	250	457.7	990	2387.5	96.5%	0.86	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L2-6	6	280	524.3	990	2674.0	96.6%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M1-8	8	132	260.9	745	1680.8	94.9%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M2-8	8	160	311.7	745	2037.3	95.1%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355M3-8	8	185	359.3	745	2355.7	95.4%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L-8	8	200	388.5	745	2546.7	95.4%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355L2-8	8	220	427.3	745	2801.3	95.4%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X1-4	4	355	633.9	1490	2260.2	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X2-4	4	400	714.2	1490	2546.7	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X3-4	4	450	803.5	1490	2865.0	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X4-4	4	500	892.7	1490	3183.3	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X1-2	2	355	621.1	2990	1130.1	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X2-2	2	400	699.8	2990	1273.3	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X3-2	2	450	787.2	2990	1432.5	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X4-2	2	500	874.7	2990	1591.7	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X1-4	4	355	633.9	1490	2260.2	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X2-4	4	375	669.6	1490	2387.5	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X1-6	6	315	604.2	995	3008.3	96.6%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X2-6	6	355	680.9	995	3390.3	96.6%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X21-6	6	380	720.1	995	3629.0	96.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X3-6	6	400	758.0	995	3820.0	96.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X1-8	8	220	427.3	745	2801.3	95.4%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X2-8	8	250	497.7	745	3183.3	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X3-8	8	280	557.4	745	3565.3	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP355X4-8	8	315	627.1	745	4011.0	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M1-2	2	355	621.1	2990	1130.1	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M2-2	2	400	699.8	2990	1273.3	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M3-2	2	450	787.2	2990	1432.5	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L-2	2	500	874.7	2990	1591.7	96.5%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L1-2	2	560	968.9	2990	1782.7	96.5%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L2-2	2	630	1090.0	2990	2005.5	96.5%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L3-2	2	710	1228.5	2990	2260.2	96.5%	0.91	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M1-4	4	355	633.9	1490	2260.2	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M2-4	4	400	714.2	1490	2546.7	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M3-4	4	450	803.5	1490	2865.0	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L1-4	4	500	892.7	1490	3183.3	96.7%	0.88	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L2-4	4	560	988.6	1490	3565.3	96.7%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L3-4	4	630	1112.2	1490	4011.0	96.7%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M1-6	6	315	604.2	995	3008.3	96.6%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M2-6	6	355	680.9	995	3390.3	96.6%	0.82	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L1-6	6	400	758.0	995	3820.0	96.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L2-6	6	450	852.8	995	4297.5	96.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L3-6	6	500	947.5	995	4775.0	96.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L4-6	6	550	1042.3	995	5252.5	96.6%	0.83	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M1-8	8	250	497.7	745	3183.3	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400M2-8	8	280	557.4	745	3565.3	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L1-8	8	315	627.1	745	4011.0	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L2-8	8	355	706.7	745	4520.3	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP400L3-8	8	400	796.3	745	5093.3	95.4%	0.80	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X1-4	4	710	1253.5	1490	4520.3	96.7%	0.89	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X2-4	4	800	1396.7	1490	5093.3	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X3-4	4	900	1571.2	1490	5730.0	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X4-4	4	1000	1745.8	1490	6366.7	96.7%	0.90	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X1-6	6	630	1179.6	995	6016.5	96.6%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X2-6	6	670	1254.5	995	6398.5	96.6%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X3-6	6	710	1329.4	995	6780.5	96.6%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X4-6	6	750	1404.3	995	7162.5	96.6%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X5-6	6	800	1498.0	995	7640.0	96.6%	0.84	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X1-8	8	450	884.8	745	5730.0	95.4%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X2-8	8	500	983.1	745	6366.7	95.4%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X3-8	8	560	1101.1	745	7130.7	95.4%	0.81	IP55	F	S1	△	50	5~50	50~100	380
YE4VP450X4-8	8	630	1238.7	745	8022.0	95.4%	0.81	IP55	F	S1	△	50	5~50	50~100	380

联系方式

4000-999-510
